Serviceguard Configuration for Oracle RAC
Using Packages to Configure Startup and Shutdown of RAC Instances
Chapter 2 69

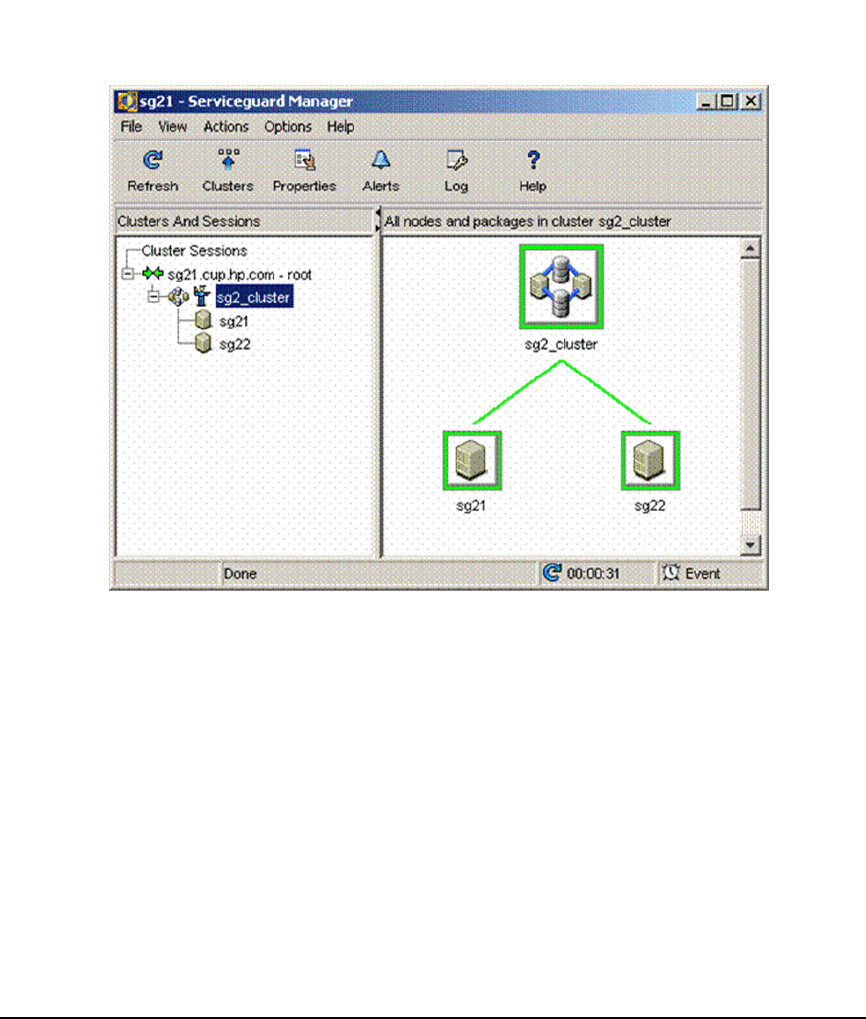

Figure 2-1 Serviceguard Manager display for a RAC Instance package
2. Create the Package.
3. Select the Parameters and select the parameters to edit.
Next select the check box “Enable template(x)” to enable Package
Template for Oracle RAC. The template defaults can be reset with
the “Reset template defaults” push button.
When enabling the template for Oracle RAC, the package can only be
run on one node.
4. Select the Node tab and select the node to run this package.
5. Select Networks tab and add monitored subnet for package.
6. Select Services tab and configure services.
