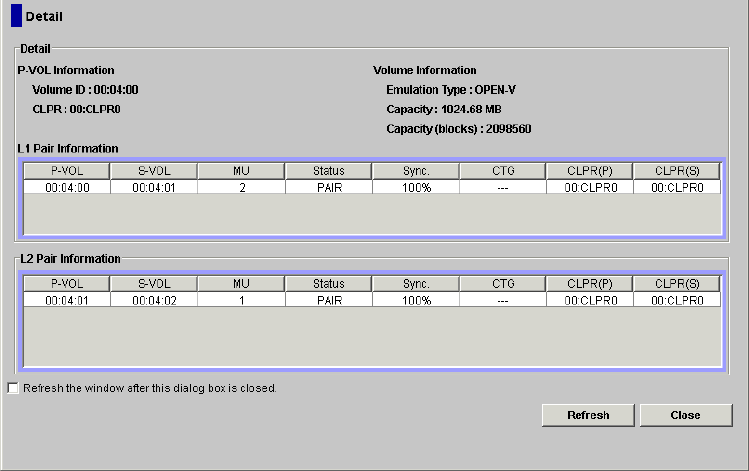

Figure 37 Detail Dialog Box Displaying Pair Information (L1 and L2 Pairs)
The Detail box in the Detail dialog box has the following features:
• P-VOL Information displays the following information:
Volume ID: Information about the P-VOL displays in XX:YY:ZZ (LDKC number:CU
number:LDEV number) format.
An LDEV number that ends with a pound or gate symbol (#) indicates that the LDEV is an
external volume (for example, 00:00:01#). An LDEV number that ends with a letter X
◦
indicates that the LDEV is a virtual volume used by XP Thin Provisioning (for example,
00:00:01X). For details regarding the external volumes, see the HP XP24000/XP20000
External Storage Software User Guide. For information about XP Thin Provisioning, see
the HP XP24000/XP20000 Thin Provisioning Software User Guide.
◦ CLPR: Information about the cache logical partition (CLPR) of the P-VOL displays in AA:BB
(CLPR number:CLPR name) format.
• Volume Information displays the following information:
Emulation Type: The emulation type of the volume.◦
◦ Capacity: The capacity of the volume in mega bytes (MB).
◦ Capacity(blocks): The number of blocks of the volume.
• The L1 Pair Information box displays the following information:
P-VOL: The LUN information for the P-VOL displays in XX:YY:ZZ (LDKC number:CU
number:LDEV number) format.
◦
◦ S-VOL: The LUN information for the S-VOL displays in XX:YY:ZZ (LDKC number:CU
number:LDEV number) format.
◦ MU: MU number.
◦ Status: The status of the L1 pair displays. For detailed information about pair statuses,
see (page 21).
◦ Sync.: The rate of synchronization of the P-VOL and the S-VOL.
◦ CTG: The consistency group number displays if the L1 pair is registered to the group. If
the pair is not registered to the consistency group, --- displays.
