NOTE: The following symbols cannot be used: \ , / : ; * ? " < > | & % ^
Extension MIB Specifications
Extension MIB Configuration

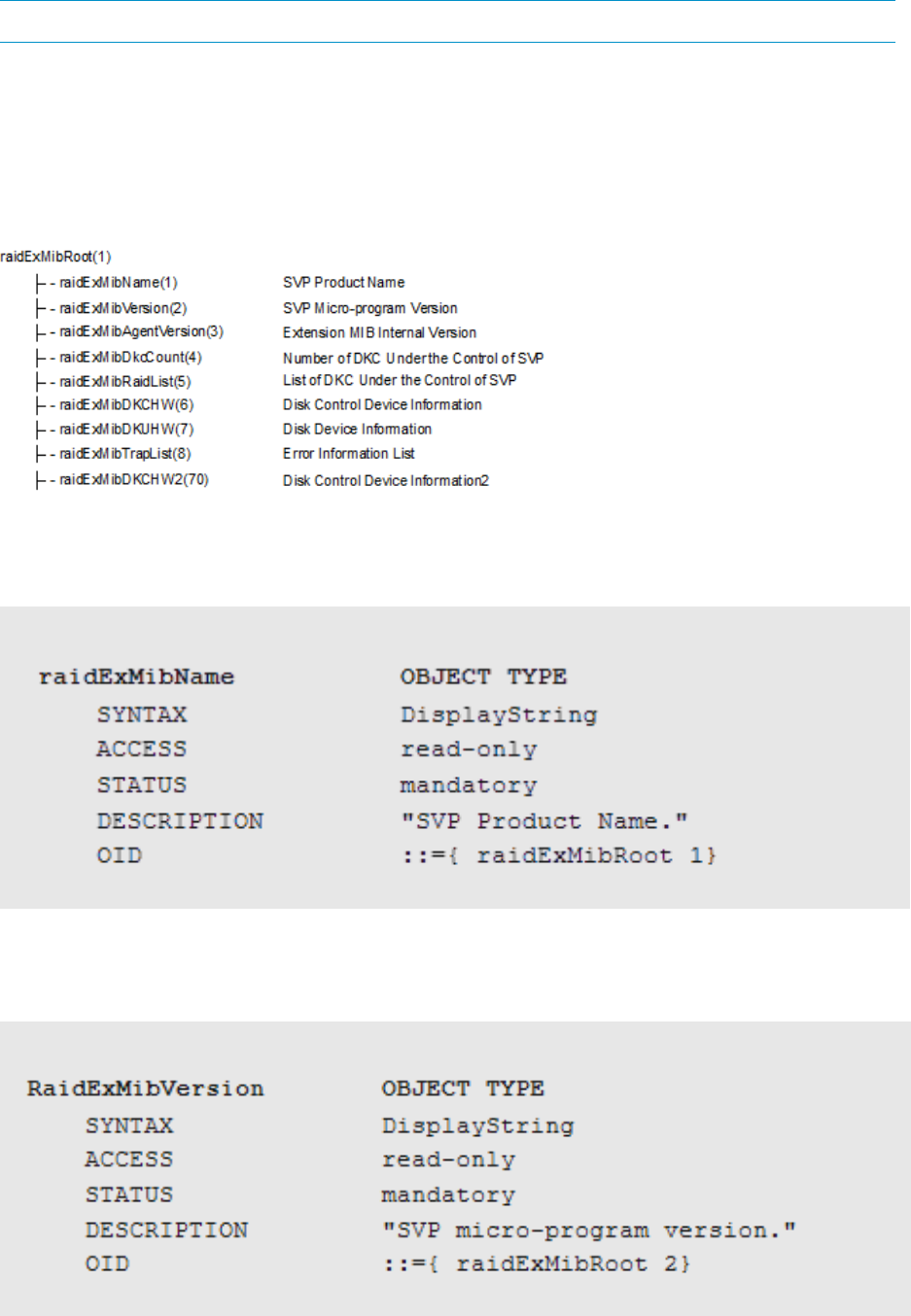

“Extension MIB Configuration” (page 25) shows the Extension MIB configuration.
Figure 18 Extension MIB Configuration
raidExMibName
raidExMibName indicates the SVP product name.
raidExMibVersion
raidExMibVersion indicates the microcode version.
Extension MIB Specifications 25
