5. Select Delete IP Address. A confirmation message displays.
6. Select OK or Cancel. The selected IP address is deleted from Community & Trap, but the change
is not yet implemented.
7. Select Apply or Cancel. Select OK on the confirmation message.

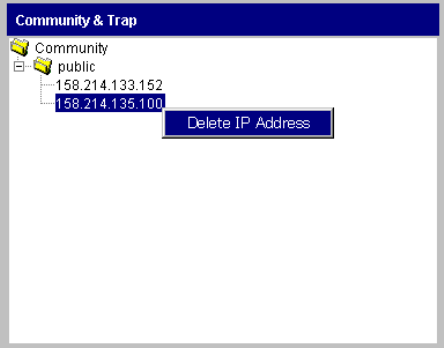

Figure 14 Delete Community IP Address Menu
Testing the SNMP Trap Report
To test the SNMP Trap report:
1. Log on to Remote Web Console. Click Go – Environmental Settings – SNMP Information in the
menu bar of Remote Web Console Main window. The SNMP Information window appears.
2. Change to Modify mode.
3. Select Trap Test. A confirmation message displays.
4. Select OK or Cancel. Verify whether the SNMP trap report, which is reference code 7FFFFF,
is received by the SNMP manager registered in the community.
