HP StorageWorks XP24000/XP20000 SNMP Agent Reference Guide (AE131-96088, May 2011)

6. Select Apply to implement the changes, or select Cancel to cancel the changes, then select
OK on the confirmation message.

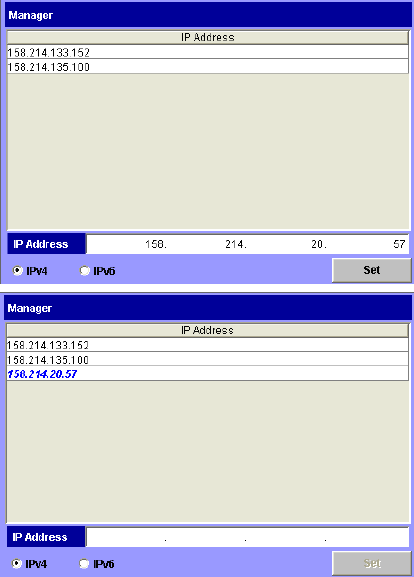

Figure 5 Adding SNMP Manager IP Address (Top: Before Setting, Bottom: After Setting)
Deleting SNMP Manager IP Addresses
To delete an SNMP Manager IP address:
1. Change to Modify mode.
2. Log on to Remote Web Console. Click Go – Environmental Settings – SNMP Information in the
menu bar of Remote Web Console Main window. The SNMP Information window is displayed
(see “SNMP Information Tab” (page 11)).
3. Select one or more unwanted IP addresses in IP Address list box. Right-click to display Delete
IP Address menu (see “Delete IP Address Menu” (page 16)).
4. Select Delete IP Address.
5. A confirmation message displays. Select OK or Cancel.
6. Select Apply. Select OK or Cancel.
Deleting SNMP Manager IP Addresses 15
