HP StorageWorks XP Audit Log reference guide for the XP12000/XP10000 and SVS 200 (5697-7157, November 2007)

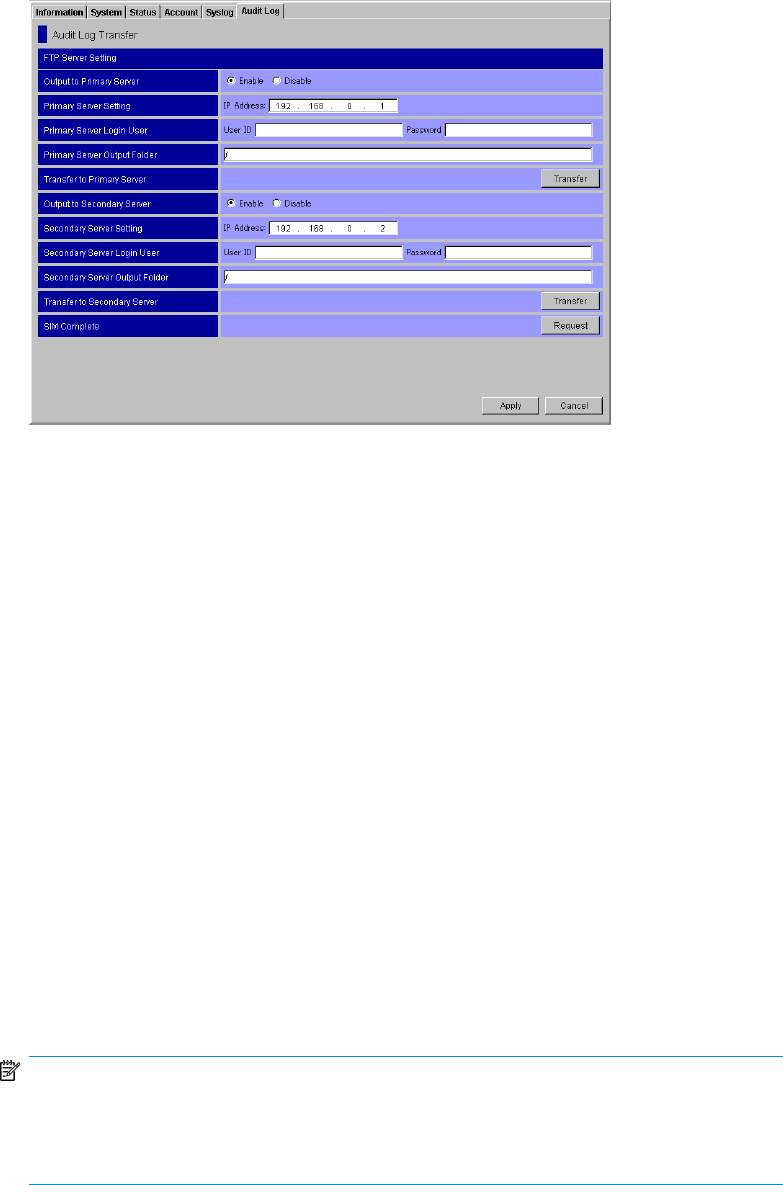

Figure 5 Audit Log tab
5. Set the primary FTP server according to the following procedure:
a. Click Enable in Output to Primary Server.
b. Enter the IP address in the Primary Server Setting. You do not have to enter the periods.
c. Enter the User ID and Password you use to login the primary FTP server.
d. Enter the folder to which the audit log information file will be output.
6. If you want to use the secondary FTP server, set the secondary FTP server according to the following
procedure. If you do not use the secondary FTP server, skip to the next step:
a. Click Enable for Output to Secondary Server.
b. Enter the IP address in the Secondary Server Setting. You do not have to enter the periods.
c. Enter the User ID and Password you use to login the secondary FTP server.
d. Enter the folder to which the audit log information file will be output.
7. Click Apply. A confirmation message will display.
8. Click OK the apply the settings, or click Cancel.
9. Confirm that the FTP server setting is correct, and click Transfer to manually transfer the audit log
information file.
A message will display to indicate that the transfer has completed.
NOTE:
There are cases, such as when an SVP is replaced, that will require the input of the
configuration in the Audit Log pane again. Keep a list of the items you entered in the Audit
Log pane, such as the IP address.
Follow the steps below to transfer the audit log information file from the SVP to the FTP server manually.
1. Log on as a storage administrator and open the XP Remote Web Console main pane.
2. Click the Audit Log tab to open the Audit Log pane.
XP Audit Log reference guide 31
