External Storage XP user guide 87
• ”Changing a defined alternate path priority” on page 89
• ”Canceling alternate path definitions” on page 91
• ”Changing alternate paths” on page 91
The Path Setting window displays information about external arrays and the condition of paths set from the
internal LDEV to the external LU.

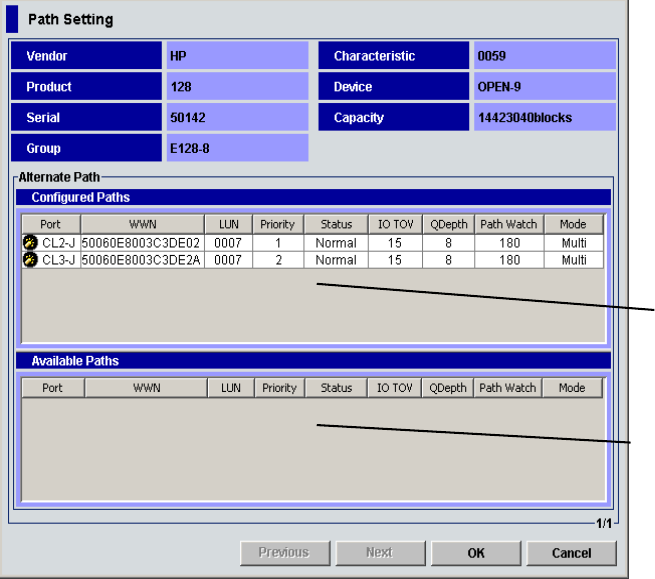

Figure 51 Path Setting window
• Vendor
External array’s vendor.
• Product
External array’s product name.
• Serial
External array’s serial number.
• Group
External LU group and reference number of the external LU in the group.
• Characteristic
External LU’s identification number.
• Device
External LU’s device name.
• Capacity
External LU’s capacity in blocks.
• Alternate Path List
Status of alternate paths. The Alternate Path list consists of two tables. The Configured Paths table
displays previously defined paths. The Available Paths table displays available paths. The Alternate
Path list displays the following information:
Defined
Available
paths
paths
