HP StorageWorks External Storage XP user guide (T1706-96006, June 2006)

External Storage XP user guide 79
After automatically mapping the external LU using the Linear button, release the Linear button,
and map the external LU individually (Figure 45)
.

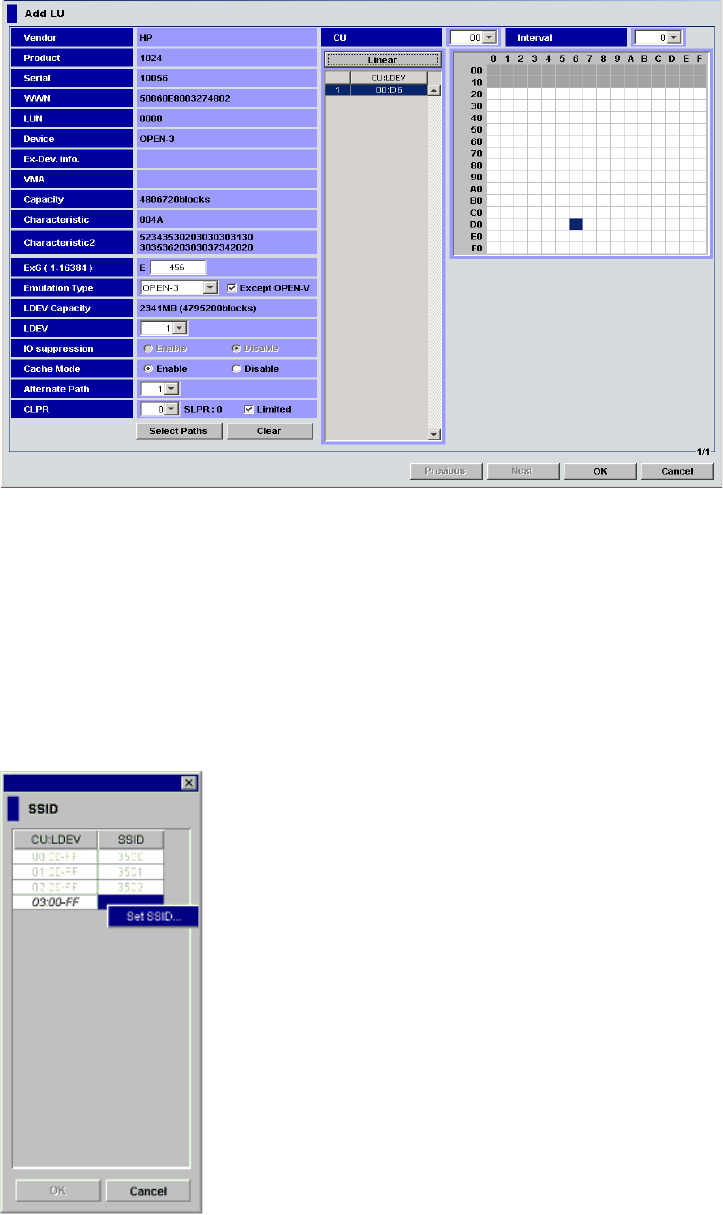

Figure 45 Add LU pane (mapping with the Linear button released
6. If you do not want to automatically set primary and alternate paths, but want to specify paths set as
candidates for primary and alternate paths, click Select Paths. The Select Paths pane appears.
To automatically set alternate paths, go to step 9.
7. Select the path and exclude it from the list of candidates for primary and alternate paths in the Select
Paths pane. For more information, see ”Select Paths pane” on page 76.
8. Click OK. The Add LU pane appears.
9. When all settings are complete on the Add LU window, click OK.
• If you need to set the SSID, the SSID window appears. Go to step 10.
Figure 46 SSID window
• If the SSID setting is not necessary, the Add LU window closes, and the LU Operation pane
appears. Settings appear in blue italics in the Device tree and Device list. Contents specified in the
Add LU window appear in the Preset list. To check setting details, right-click the setting in the Preset
