i. To map two or more external LU at the same time, select the interval that arranges each volume in
the Interval box.
j. Select one or more external LUs, and select one or more cells in the LDEV map.
When selecting two or more external LUs in the CU:LDEV list, if you select one cell of the internal
LDEV number in the LDEV map, the number of cells automatically selected is the same as the
number external LUs selected in the CU:LDEV list with the selected internal LDEV first. When Interval
is set, mapping is done at intervals of the specified number.
• To map all the external LUs displayed in the CU:LDEV list at one time:
Click Linear, and select an internal LDEV on the LDEV map. The same number of internal LDEVs
as the external LUs listed in the CU:LDEV list are automatically selected on the LDEV map
following the internal LDEV you selected (Figure 44). The LDEV numbers of the selected XP LDEV
are in a series. When Interval is set, the mapping is done at the specified interval.

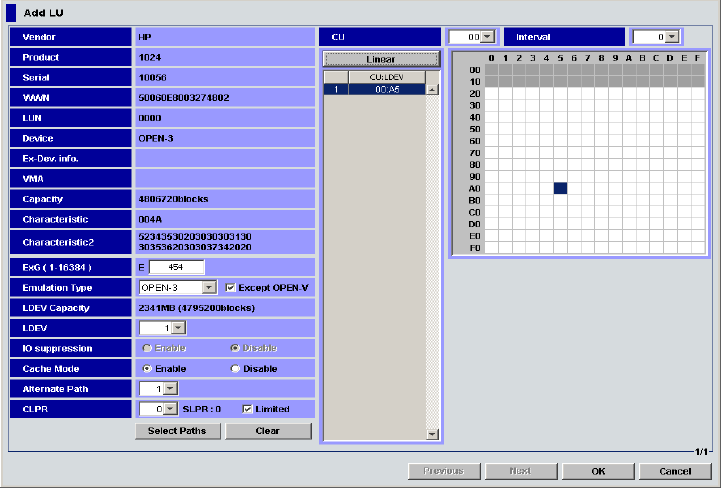

Figure 44 Add LU pane (mapping using the Linear button)
• To map one external LU to another internal LDEV:
