70 External Storage XP panes
The sum of the FLI_TOV and PLI_TOV values.
Preset list (Port Operation pane)
This list displays rows from the Port Operation list that are about to be acted on. Check the contents of the
Preset list before applying them to the local array. Contents displayed in the Preset list appear in blue
italics in the Port Operation list. When you click Apply in the Port Operation pane, actions designated in
the Preset list are applied to the local array and the contents of the Preset list disappear.
If you click Cancel in the Port Operation pane, all designated actions in the Preset list are canceled.
If settings in the Preset list contain errors, actions are not applied to the local array even if you click Apply.
In that case, error messages appear, incorrect settings appear in the Preset list, and error codes appear in
the Preset list.
When you right-click a setting in the Preset list, the following commands appear:
• Detail
Displays the Preset Detail window with detailed information about actions selected in the Preset list.
When an error code appears in the Preset list, a corresponding error message appears in the Preset
Detail window.

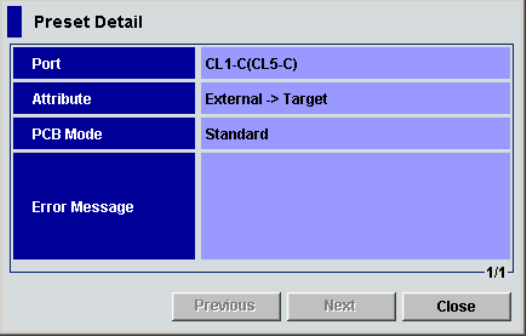

Figure 40 Preset Detail window (changing port attribute)
• Delete
Cancels actions selected in the Preset list.
