External Storage XP user guide 67
Displays the Preset Detail window with detailed information about settings selected in the Preset list.
When an error code appears in the Preset list, a corresponding error message appears in this window.

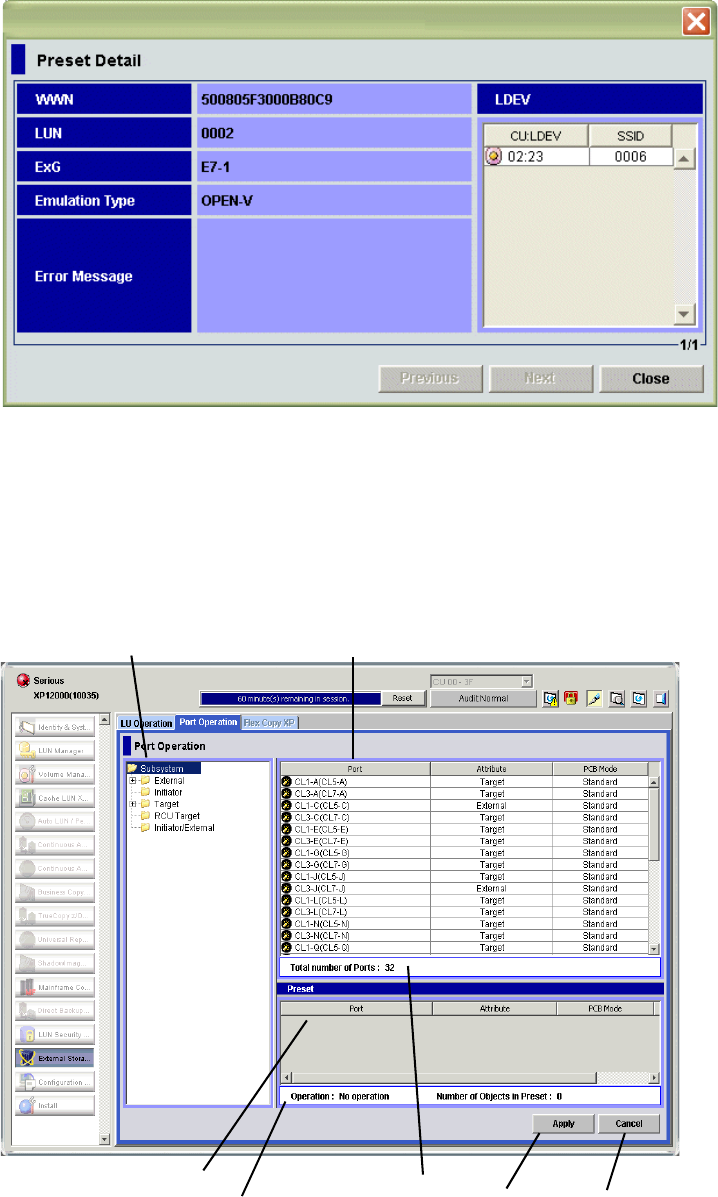

Figure 36 Preset Detail window (mapping operation)
• Delete
Cancels settings selected in the Preset list.
Port Operation pane
Use this pane to check port settings and set port attributes. This section describes items displayed in the
Port Operation pane. For instructions, see ”Setting a local array’s port attributes” on page 72.
Figure 37 Port Operation pane
• Port Operation tree
Displays information about the selected port in the Port list (right pane). You can select Subsystem, a
port attribute, or a port number. For more information, see ”Port Operation tree” on page 68.
Port Operation tree
Port Operation list
Preset list
Operation information area
Information area
Apply and Cancel buttons
