56 External Storage XP panes
LU Operation pane
This pane appears when you start External Storage XP. Information about the external array appears on
the LU Operation pane. Use this pane to perform operations such as mapping external LUs and setting
alternate paths.

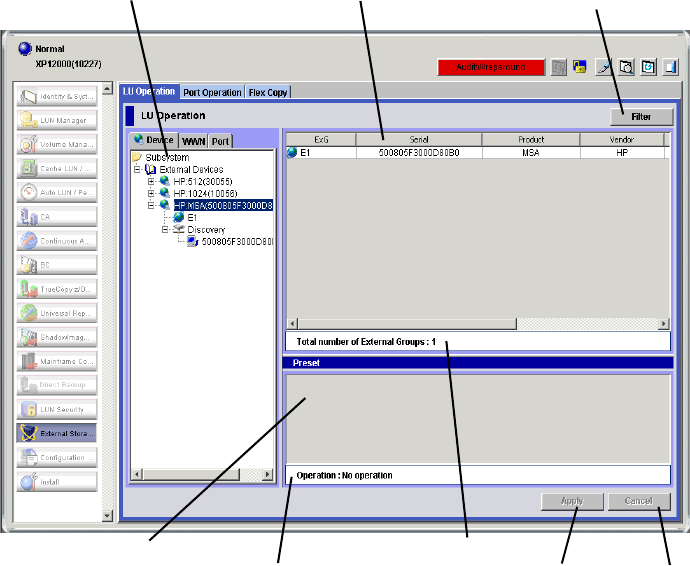

Figure 28 LU Operation pane
• Device, WWN, and Port trees
Displays information in the Device, WWN, or Port list depending on the item selected in the tree.
Select the tab to display a tree. The following items can be selected in each tree:
• Items you can select in the Device tree include Subsystem (local XP), External Devices (arrays),
product names of connected external arrays, external LU group numbers, Discovery, and external
array WWNs. For more information, see ”Device tree” on page 57.
• Items you can select in the WWN tree include Subsystem, External Devices, product names of
connected external arrays, and external array WWNs. For more information, see ”WWN tree” on
page 60.
• Items you can select in the Port tree include Subsystem, External Devices, product names of
connected external arrays, and port numbers set to external ports. For more information, see ”Port
tree” on page 63.
• Filter button
Displays the Filter window, where you can restrict items displayed in the Device, WWN, and Port lists.
For more information, see ”Filter button” on page 66.
• Device, WWN, and Port lists
Displays information about the external array corresponding to the item selected in the Device, WWN,
or Port tree.
You can sort the list by displayed items. For example, to sort the list by LUN numbers, select LUN on
the list. For more information, see ”Device list” on page 58, ”WWN list” on page 61, and ”Port list”
on page 64.
• Information area
Displays information about the contents of the Device, WWN, or Port
list, including:
Device tree Device list Filter button
Preset list
Operation information area
Information area
Apply and Cancel buttons
