External Storage XP user guide 55
4 External Storage XP panes
External Storage XP operations involve the LU Operation and Port Operation panes. In addition to these
two panes, the Flex Copy pane is available if you licensed Flex Copy XP. When you select a tab, the
corresponding pane appears.

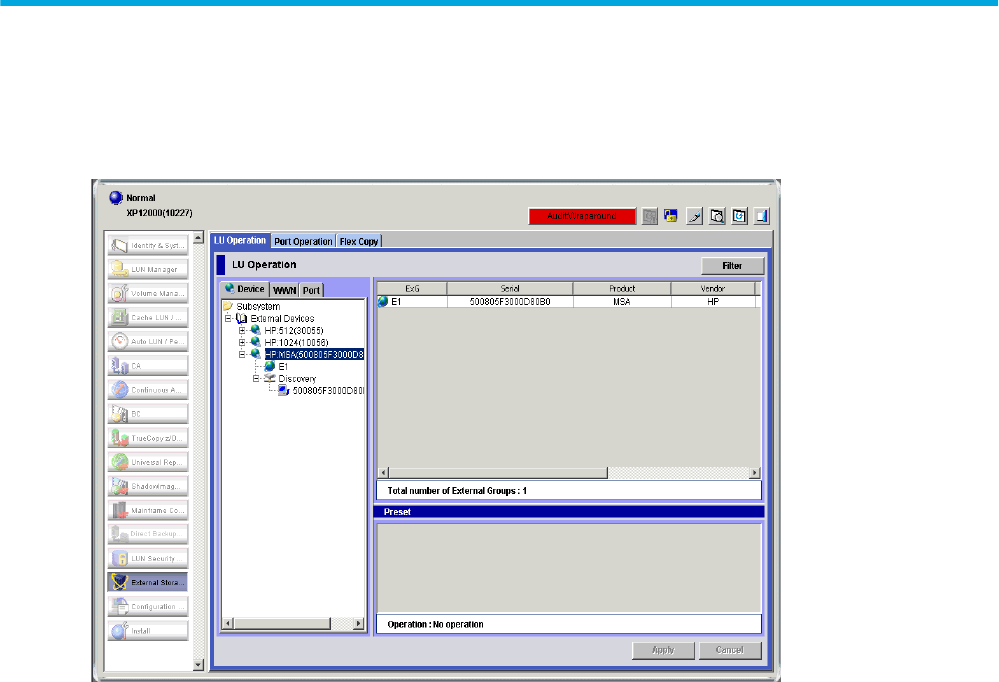

Figure 27 Panes for External Storage XP operations
