HP StorageWorks External Storage XP user guide (T1706-96006, June 2006)

External Storage XP user guide 51
4. Select the new CLPR in the tree, and change the size and other CLPR settings as needed (Figure 24).

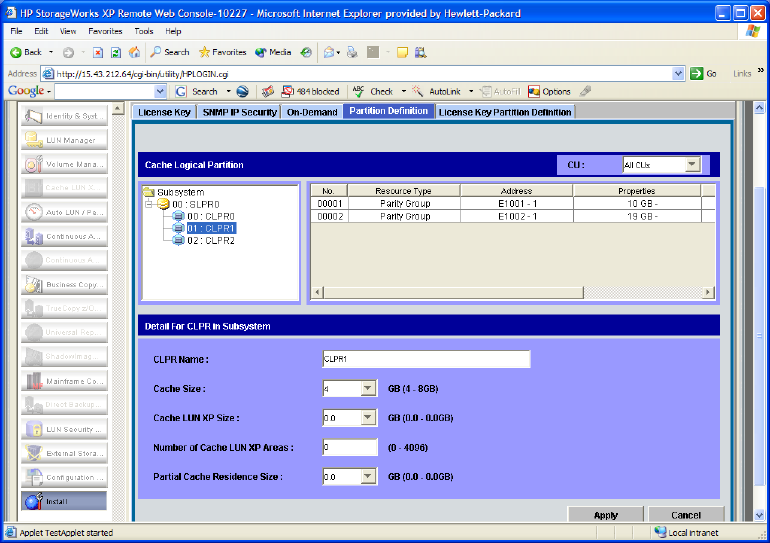

Figure 24 Partition Definition pane
5. Click Apply for the changes to becomes effective.
6. Repeat step 3 through step 5 to define any additional CLPRs that you need.
7. To allocate external storage groups to a CLPR:
a. Double-click the SLPR.
b. Select the CLPR that you want to assign the external storage groups from (this will be CLPR0 if this is
the first time you are configuring partitioning).
