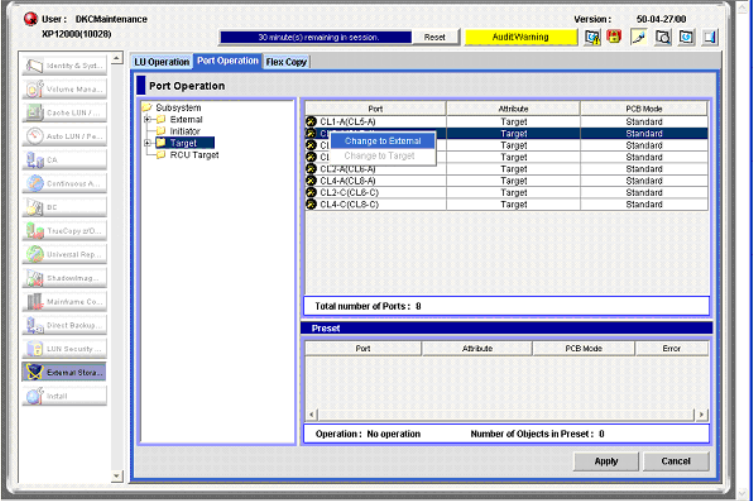

XP12000/XP10000/SVS200 ports to external ports. On the Port Operation pane in External Storage,
right-click on the desired ports, and select Change to External. Figure 79 illustrates this step.
Figure 79 Defining XP12000/XP10000/SVS200 external ports
After external ports are defined, EVA LUs presented to the XP12000/XP10000/SVS200 can be defined
as XP external storage LDEVs.
Defining XP12000/XP10000/SVS200 external storage LDEVs
Use Command View XP or XP Remote Web Console to define external storage LDEVs. On the LU
Operation pane in External Storage, select one of the two EVA controller port world wide port names in
the Device tree. In the Device list, right-click on one or more EVA LUs being presented through the
controller previously selected, and select Add LU. Figure 80 illustrates this step.
