External Storage XP user guide 107
6 Troubleshooting NAS Blade systems that include
external arrays
If your local array is provided with a NAS package, you can configure the NAS Blade system that includes
an external array. This chapter describes procedures to stop the external array for maintenance and
recover the external array from a failure.
For more information about each procedure, see the following manuals:
• For NAS Blade Manager, see the NAS Blade Manager User’s Guide.
• For NAS Sync Image, see the NAS Sync Image User’s Guide.
• For Business Copy XP, see the HP StorageWorks Business Copy XP user guide for the
XP12000/XP10000/SVS200.
• For LUN Manager, see the HP StorageWorks LUN Configuration and Security Manager XP user guide
for the XP12000/XP10000/SVS200.
• For Continuous Access XP, see the HP StorageWorks Continuous Access XP user guide for the
XP12000/XP10000/SVS200.
Stopping and restarting external arrays
Figure 60 shows an example of a NAS Blade system configuration that includes an external array. The
procedures to stop the external array for maintenance and restart the external array after maintenance to
restore the NAS Blade system are described below, referring to Figure 60.

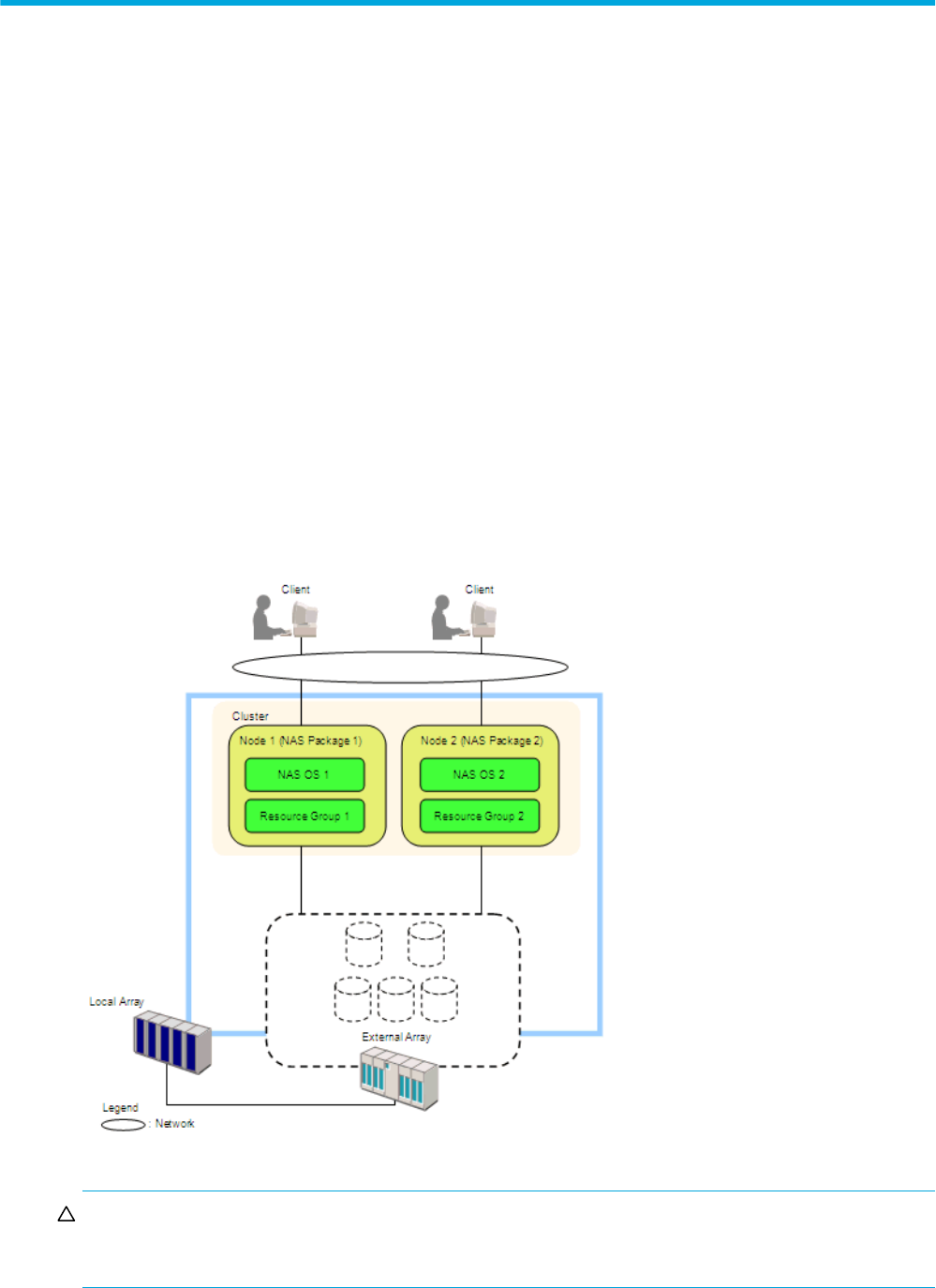

Figure 60 Example of a NAS Blade system configuration that includes an external array
CAUTION: To stop the external array, execute the procedure according to the following description. If you
execute the wrong procedure, an error occurs in the NAS Blade system (for example, the file system might
be blocked or the resource group’s status might become inappropriate).
