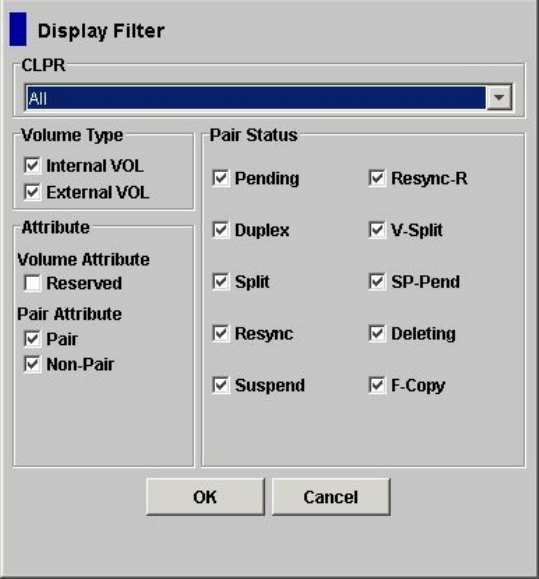

Figure 28 Display Filter Dialog Box
The Display Filter dialog box has the following features:
• The CLPR list allows you to display the specified cache logical partition (CLPR).
• The Volume Type box:
The Internal VOL check box allows you to display the internal volumes.◦
◦ The External VOL check box allows you to display the external volumes.
Both check boxes are selected by default. Select either one of these two check boxes, otherwise
all the settings in the Display Filter dialog box become invalid.
• The Attribute box:
The Reserved check box allows you to display reserved or unreserved volumes. If you
select the Reserved check box, reserved volumes and volumes specified as the T-VOL are
◦
displayed in the Volume List. If you clear the Reserved check box, only unreserved volumes
are displayed.
If you select the Reserved check box, you cannot select any other check boxes.
Volumes specified as the T-VOL of an SIz pair are automatically reserved by the storage
system.
◦ The Pair check box allows you to display paired volumes.
◦ The Non-Pair check box allows you to display non-paired (simplex) volumes.
• The Pair Status box allows you to filter the pairs displayed in the Volume List by pair status.
If you select the check boxes, you can display the pairs in those statuses. Since F-Copy is the
status of Version 1 relationships, you do not need to select this check box when you are using
ShadowImage for Mainframe.
• The OK button applies the settings, and closes the dialog box.
• The Cancel button resets the settings, and closes the dialog box.
To configure the Volume List:
