Table 21 ShadowImage for Mainframe Menu Commands for the Pair Operation Window (continued)
FeatureCommand
Opens the Delete Volume Pair dialog box, which allows you to delete SIz pairs (see
(page 82)).
Delete Pair
Opens the Set Reserve Attribute dialog box or Reset Reserve Attribute dialog box allows
you to set/reset the SIz reserve attribute (see (page 64) and (page 65)).
Change Reserve
Opens the Information dialog box (see (page 85)), which displays the number of SIz
pairs or reserved volumes.
Information
Preview List
The Preview List (see Figure 24 (page 55)) is located below the Volume List, and lists the operations
(volume/pair information), which have not been applied to the storage system.

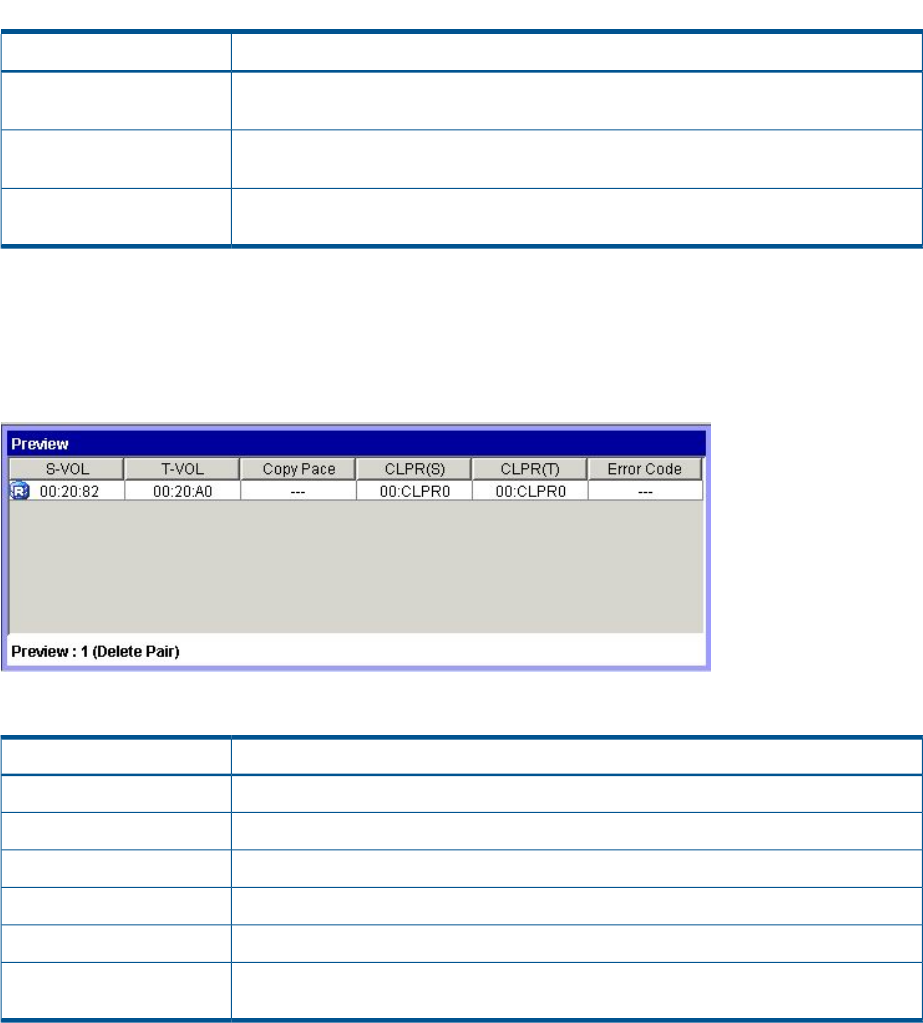

Figure 24 Preview List
Table 22 Preview List Operations
DescriptionItem
Displays S-VOL information in XX:YY:ZZ (LDKC number: CU number: LDEV ID) format.S-VOL
Displays T-VOL information in XX:YY:ZZ (LDKC number: CU number: LDEV ID) format.T-VOL
Displays copying pace information for all pairs being added.Copy Pace
Displays the cache logical partition information (CLPR) of the S-VOL.CLPR (S)
Displays the cache logical partition information (CLPR) of the T-VOL.CLPR (T)
Displays the reason code if the preview operations (settings) cannot be applied successfully
with the Apply button.
Error Code
The following information displays in the information field below the Preview List:
Preview: X(Y)/Z, where:
X = the number of settings remaining in the Preview List that are still not applied to the HP disk
array.
Y = the type of pair operation
Z = command option
You can change the Preview List by right-click the setting in the Preview List and display the menus.
Table 23 (page 56) shows the available menu commands in the Preview List.
Pair Operation Window 55
