Table 10 Quick Restore Operation When Volume Is Shared with SIz Pair and URz Pair
Quick Restore Operation on SIz PairShared Volume
Universal Replicator for MainframeShadowImage for Mainframe
YesP-VOLP-VOL
YesS-VOL
YesP-VOLS-VOL
TrueCopy for Mainframe and Universal Replicator for Mainframe
Figure 18 (page 36) and Figure 19 (page 37) show examples of using SIz, TCz, and URz at the
same time.
A primary volume (P-VOL) of Universal Replicator for Mainframe means a primary data volume of
Universal Replicator for Mainframe. A secondary volume (S-VOL) of Universal Replicator for
Mainframe means a secondary data volume of Universal Replicator for Mainframe.
The configuration shown in Figure 18 (page 36) shows a volume functioning as both a URz S-VOL
and a TCz M-VOL.
Figure 18 SIz, URz, and TCz: Shared S-VOL / S-VOL / M-VOL

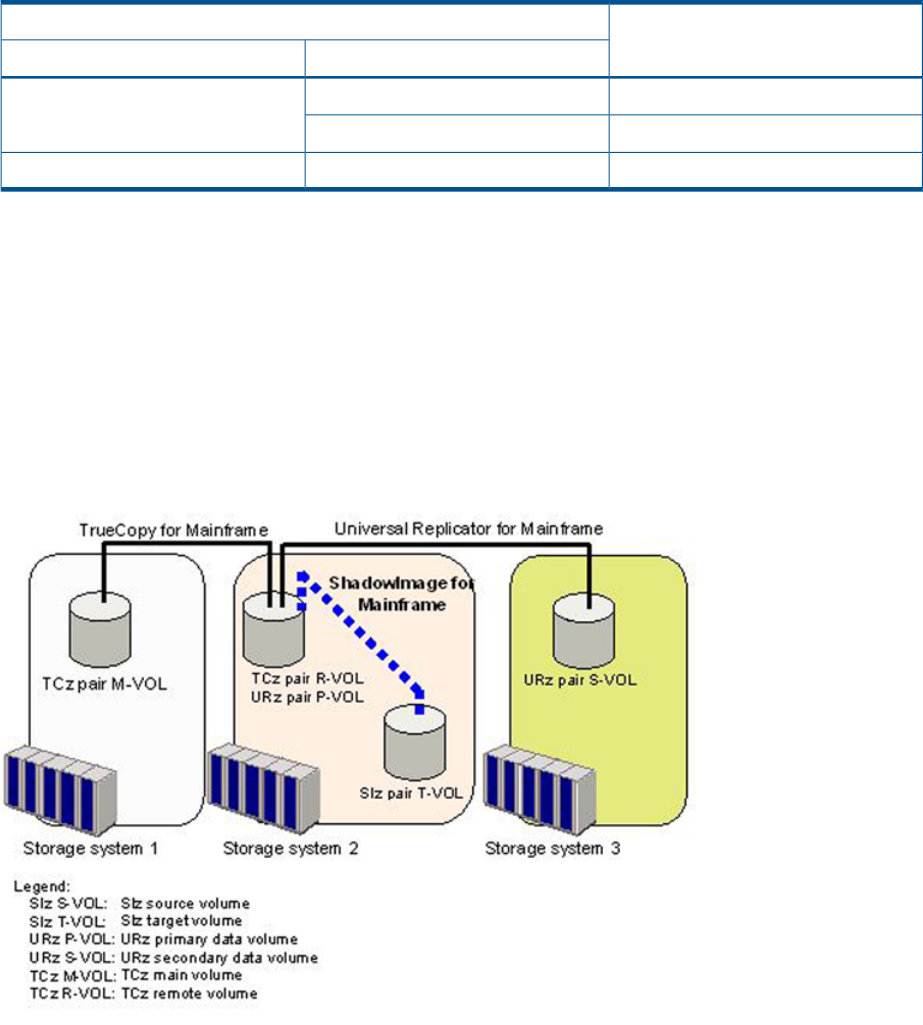

The configuration shown in Figure 19 (page 37) shows a volume functioning as both a TCz R-VOL
and a URz P-VOL.
36 Interoperability with other Products and Functions
