Cabling 58

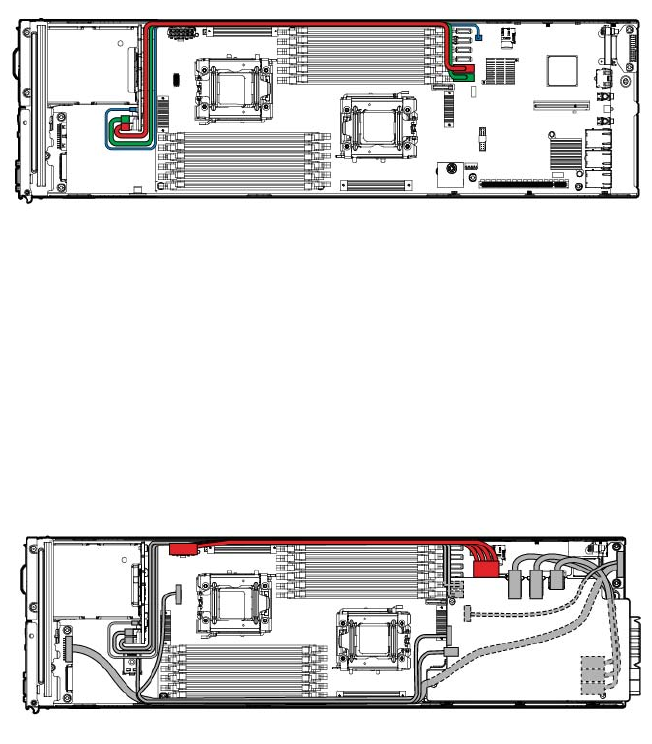

SATA cabling
To access cables underneath the personality board assembly, see "Personality board assembly (on page
37)."
The SATA cables route over the HDD data LED cable and underneath the power cable.
Connect and route the cables in the following order:
1. HDD data LED cable (bottom)
2. SATA cables
3. Power cable
Internal power cabling
The power cable routes over the HDD LED cable and SATA cables.
Connect and route the cables in the following order:
1. HDD data LED cable (bottom)
2. SATA cables
3. Power cable
