Cabling 57
Cabling

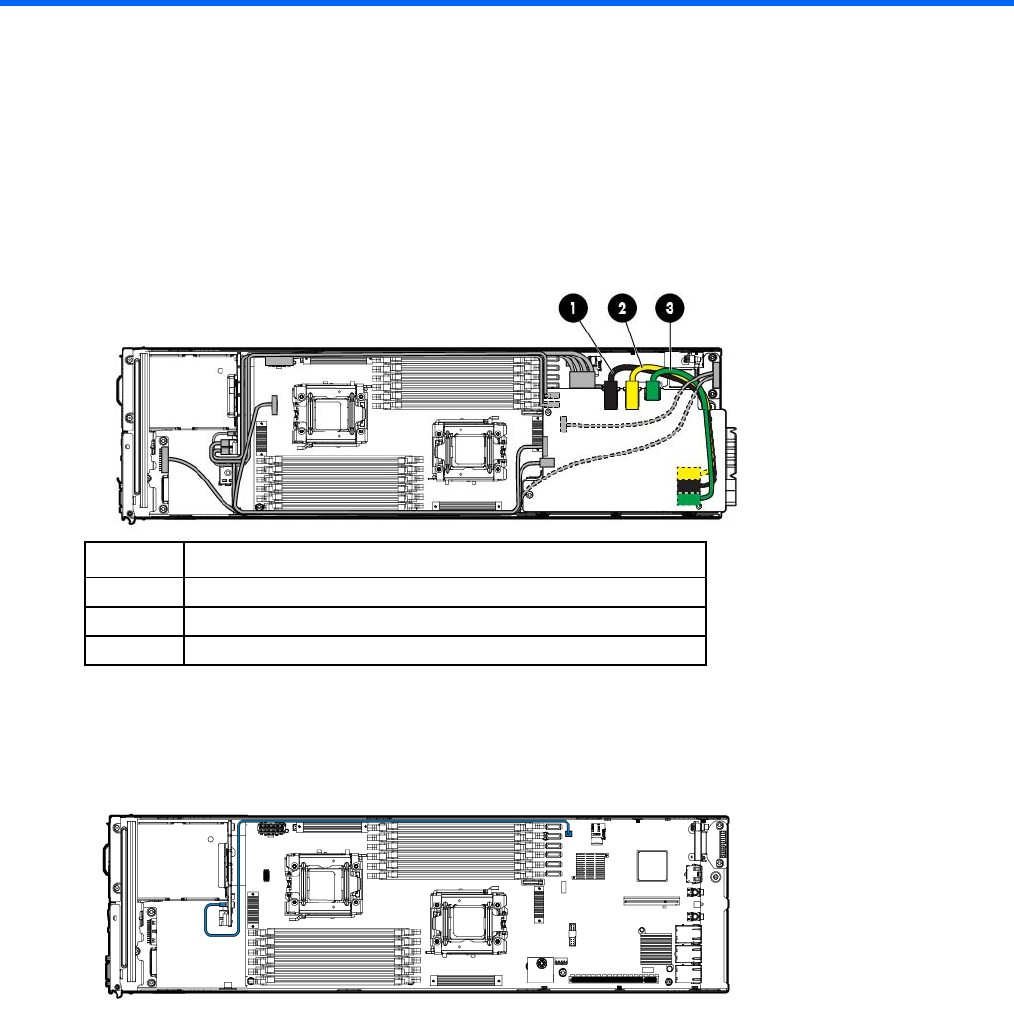

Personality board cabling
To access cables underneath the personality board assembly, see "Personality board assembly (on page
37)."
Item Description
1
NIC 2 (1 Gb)
2
NIC 1 (1 Gb)
3
iLO
HDD data LED cabling
The HDD data LED cable routes underneath the SATA cables and power cable.
Connect and route the cables in the following order:
1. HDD data LED cable (bottom)
2. SATA cables
3. Power cable
