Component identification 56
drivers, and applications. Many crashes can freeze a system, requiring you to do a hard reset. Resetting the
system erases any information that would support root cause analysis.
Systems running Microsoft® Windows® experience a blue-screen trap when the OS crashes. When this
happens, Microsoft® recommends that system administrators perform an NMI event by temporarily shorting
the NMI header with a jumper. The NMI event enables a hung system to become responsive again.

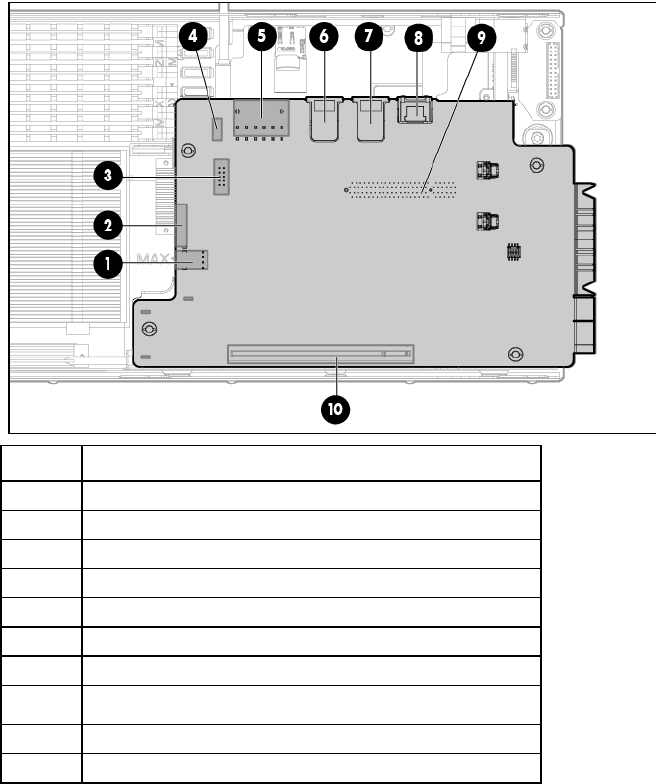

Personality board components
Item Description
1
Drive power connector
2
RPS connector
3
Serial connector*
4
LED cable connector*
5
Power connector
6
NIC 2 connector
7
NIC 1 connector
8
iLO connector
9
x8 personality board connector
10
x16 personality board connector
* This connector is underneath the board.
