Removal and replacement procedures 37
Personality board assembly
To remove the component:
1. Power down the node (on page 22).
2. Remove the node from the chassis ("Remove a node from the chassis" on page 23).
3. Remove the access panel (on page 24).

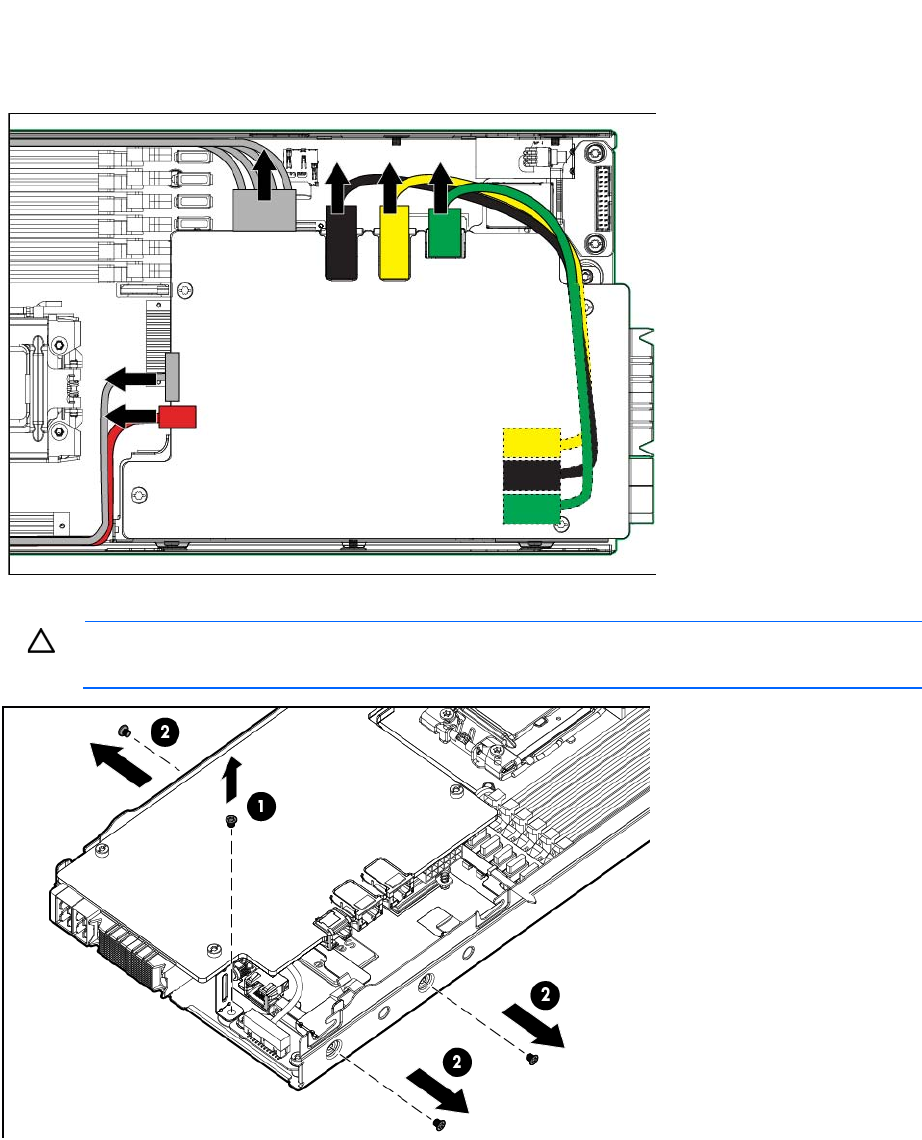

4. Disconnect all cables connected to the top of the personality board.
5. Remove the screws securing the personality board assembly to the node.
CAUTION: Do not remove the four screws that secure the personality board to the bracket. Only
remove the screws that secure the personality board assembly to the system board.
