Removal and replacement procedures 36
6.
Remove the board.
To replace the component, reverse the removal procedure.

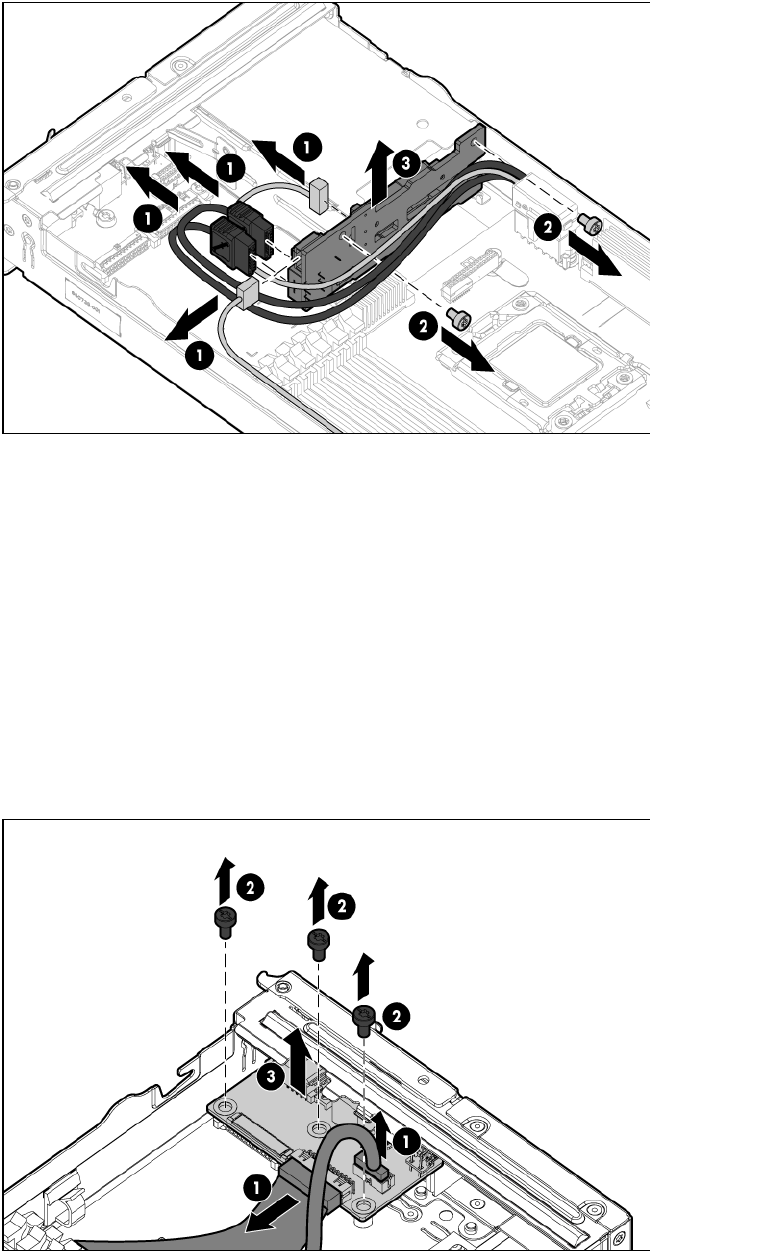

Front panel board
To remove the component:
1. Power down the node (on page 22).
2. Remove the node from the chassis ("Remove a node from the chassis" on page 23).
3. Remove the access panel (on page 24).
4. Disconnect all cables from the front panel board.
5. Remove the three screws securing the front panel board to the node.
6. Remove the board.
To replace the component, reverse the removal procedure.
