Setup 30
Installing hardware options
Install any hardware options before initializing the node. For options installation information, see the option
documentation. For node-specific information, see "Hardware options installation (on page 32)."

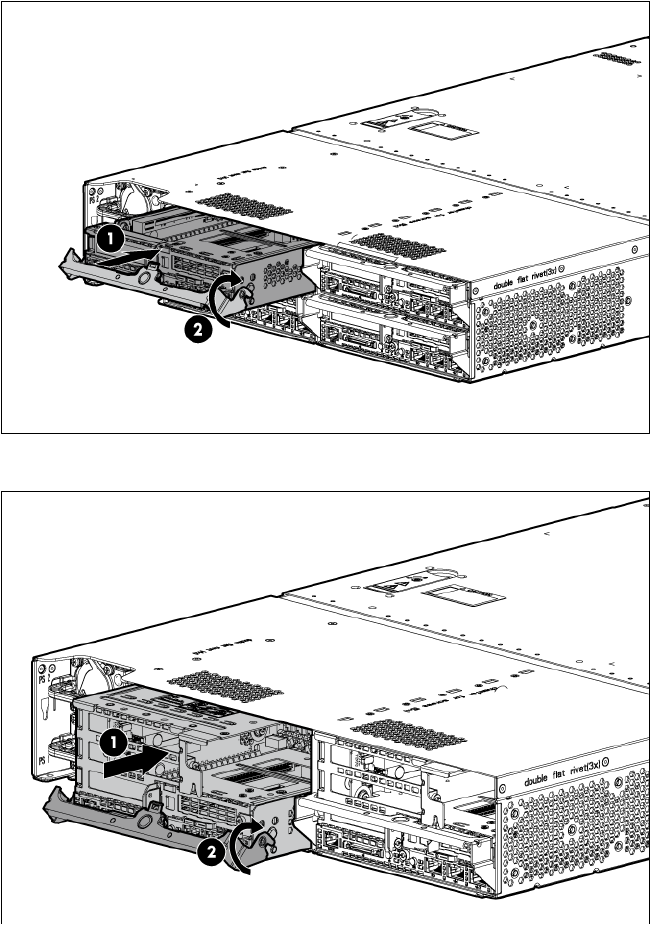

Installing a node into the chassis
• 1U node
• 2U node
Powering on and selecting boot options
1. Connect the Ethernet cable between the network connector on the node and a network jack.
2. Press the Power On/Standby button.
