HP ProLiant SL165z G6 Server Installation Sheet

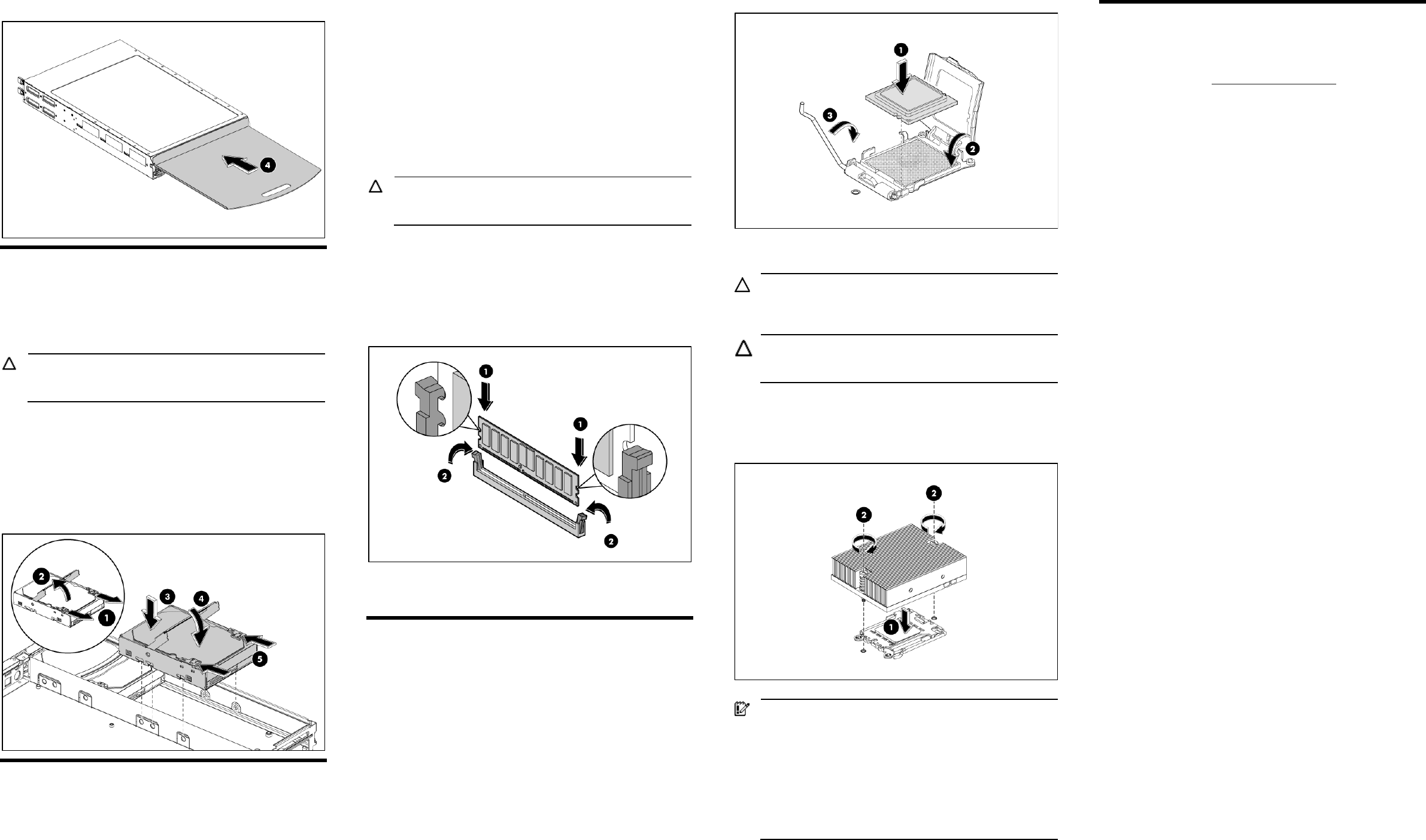

Figure 4 Installing the tray blank
Installing a Hard Disk Drive
Each chassis can accommodate two server trays. Each server tray
can accommodate two LFF or four SFF hard disk drives for a
maximum of four LFF or eight SFF hard disk drives per chassis. The
server supports both SAS and SATA hard disk drives.
CAUTION: Drives can be damaged by static electricity. Before
handling drives, touch an unpainted metal surface to
discharge static electricity.
To install a hard disk drive:
1. Unlock the HDD carrier latches.
2. Rotate the HDD carrier handle up.
3. Insert the HDD carrier and align the five pins.
4. Rotate the HDD carrier handle down.
5. Lock the HDD carrier latches.
Figure 5 Installing a hard disk drive
Installing a Memory Module
The following guidelines must be followed when memory modules
are being added or replaced:
• Use only HP supported DDR2 800 MHz SDRAM with Advanced
ECC (Registered) PC2-6400 or DDR2 667MHz with Advanced
ECC (Registered) PC2-5300.
• Supported configurations:
o Two DIMMs per processor: J107, J106 for CPU1; J14, J13
for CPU0.
o Four DIMMs per processor: J107, J106, J105, J104 for
CPU1; J14, J13, J12, J11 for CPU0.
o Six DIMMs per processor: J107, J106, J105, J104, J103,
J102 for CPU1; J14, J13, J12, J11, J10, J9 for CPU0.
o Eight DIMMs per processor: J107, J106, J105, J104, J103,
J102, J101, J100 for CPU1; J14, J13, J12, J11, J10, J9, J8,
J7 for CPU0.
o DIMM pairs must be identical.
CAUTION: DIMMs can be damaged by improper handling.
Always use an anti-static wrist strap and grounding mat, and
discharge static electricity before touching DIMMs.
To install a memory module:
1. Align the notch on the bottom edge of the module with the
keyed surface of the DIMM slot and then press the module fully
into the slot.
2. Firmly press the holding clips inward to secure the memory
module in place.
Figure 6 Installing a memory module
DIMM slots are structured to ensure proper installation. If you insert a
DIMM but it does not fit easily into the slot, you may have inserted it
incorrectly. Reverse the orientation of the DIMM and insert it again.
Installing a Processor
HP ProLiant SL165z G6 server supports AMD quad-core Shanghai
and six-core Istanbul Opteron 2000 series processors.
To install a processor:
1. Insert the processor into the socket, using the key on the
processor.
2. Engage the retention plate and the load lever.
Figure 7 Installing a processor
For processor removal, reverse the above installation procedures.
To install the heatsink:
CAUTION: Heatsink screws should be tightened and
loosened in opposite sequence. Do not overtighten the screws
as this can damage the system board, connectors, or screws.
A maximum torque of 6-8 in-lb is set for the system.
CAUTION: Be sure that the heatsink sits squarely on the
processor, or overheating and damage to the processor may
occur.
1. Position the heatsink on the processor backplate.
2. Tighten the first screw about three quarters in, then tighten the
second screw completely.
3. Completely tighten the first screw.
Figure 8 Installing the heatsink
IMPORTANT: If the heatsink has been removed for any
reason, it is critical that you apply more thermal interface
material to the integrated heat spreader on the processor to
ensure proper thermal bonding between the processor and
the heatsink. Clean the contact surface of both the processor
and heatsink with an alcohol pad, then re-apply an HP-
approved thermal interface material before reinstalling the
processor. Use a pattern of five dots when applying the
thermal interface material—one dot in the center, and one dot
at each corner.
