6 HP ProLiant ML310 Generation 2 Server Maintenance and Service Guide

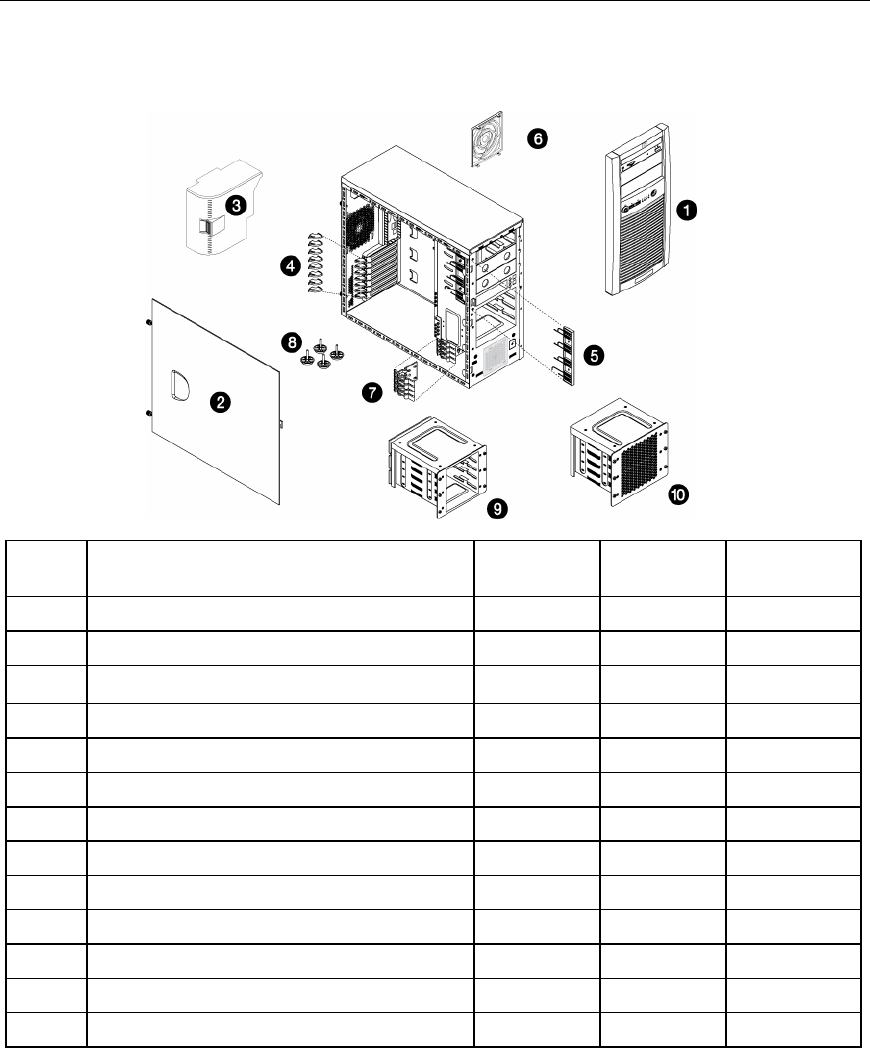

Mechanical components
Item Description Assembly
part number
Spare part
number
Customer self
repair
1 Bezel (w/o bezel key) 383678-001 382979-001 Yes
2 Access panel – – –
3 Air baffle 385712-001 385758-001 Yes
Plastics kit
– 382978-001 Yes
4 PCI retainer clips – – Yes
5 Release lever, full height drive bay – – Yes
6 Fan holder – – Yes
7 PCI expansion board guide – – Yes
8 Feet (4) – – Yes
9 Hot-plug SATA hard drive cage 346078-001 345640-001 Yes
10 Non-hot-plug SATA/SCSI hard drive cage 346079-001 382992-001 Yes
11 Hot-plug SCSI hard drive cage* 384522-001 384756-001 Yes
12 Bezel key* – 399394-001 Yes
