Server component identification 55
Item Description Status
4 Hard drive activity LED (for
non-hot-plug)
Green = Hard drives are properly connected and functioning
Off = No hard drive activity
5 NIC link/activity LED Green = Linked to network
Flashing green = Linked with activity on the network
Off = No network connection
6 Internal system health
LED
Green = Normal (system on)
Amber = System health is degraded
Red = System health is critical
Off = Normal (system off)
7 CD-ROM drive indicator
LED
N/A

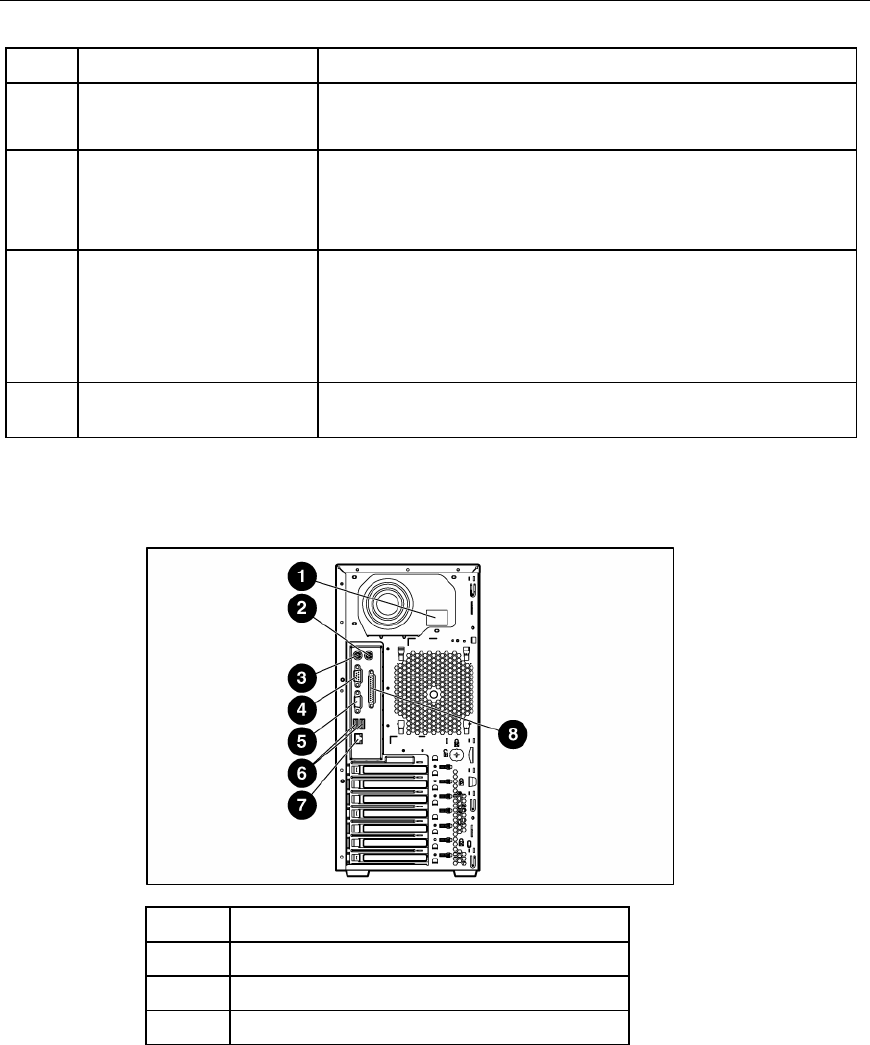

Rear panel components
Item Description
1 Power cord connector
2 Mouse connector
3 Keyboard connector
