54 HP ProLiant ML310 Generation 2 Server Maintenance and Service Guide
Item Description
1 Media bays (bezel blanks)
2 Power On/Standby button
3 Hard drive bays
4 USB connectors (2)
5 Bezel lock
6 CD-ROM drive

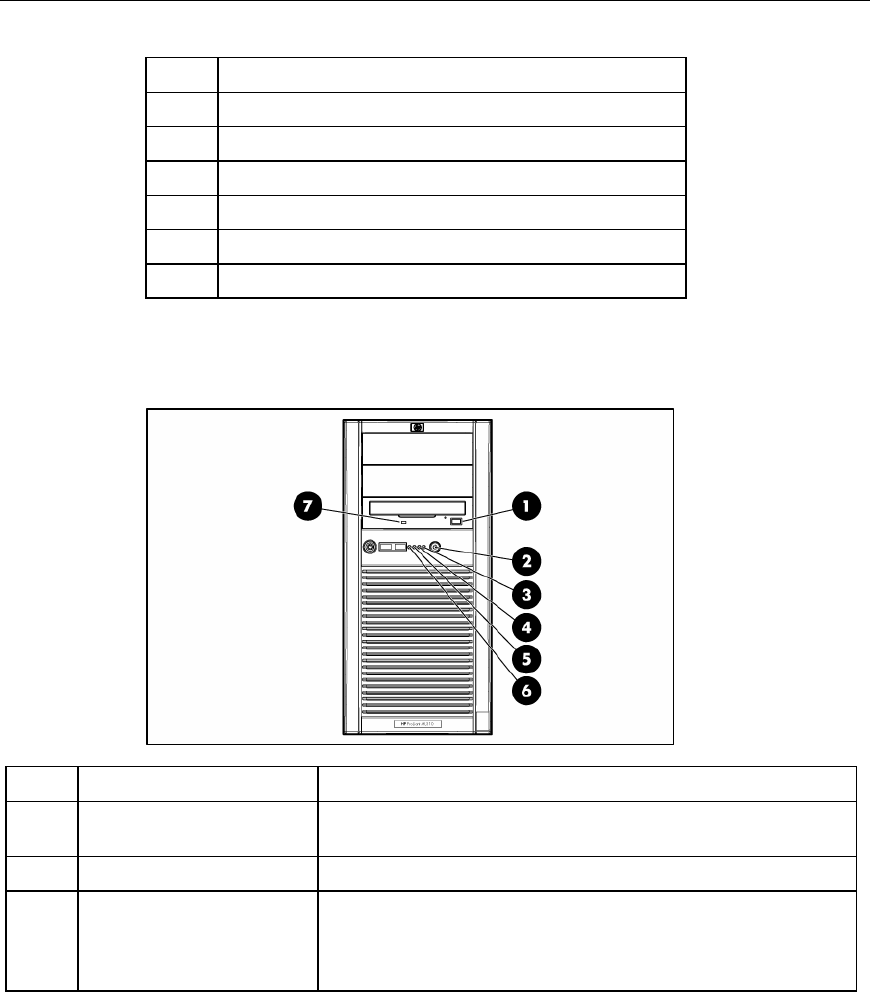

Front panel LEDs and buttons
Item Description Status
1 CD-ROM drive ejector
button
N/A
2 Power On/Standby button N/A
3 Power on/Standby LED Amber = System has AC power and is in standby mode
Green = System has AC power and is functioning
Off = System has no AC power
