Removal and replacement procedures 29

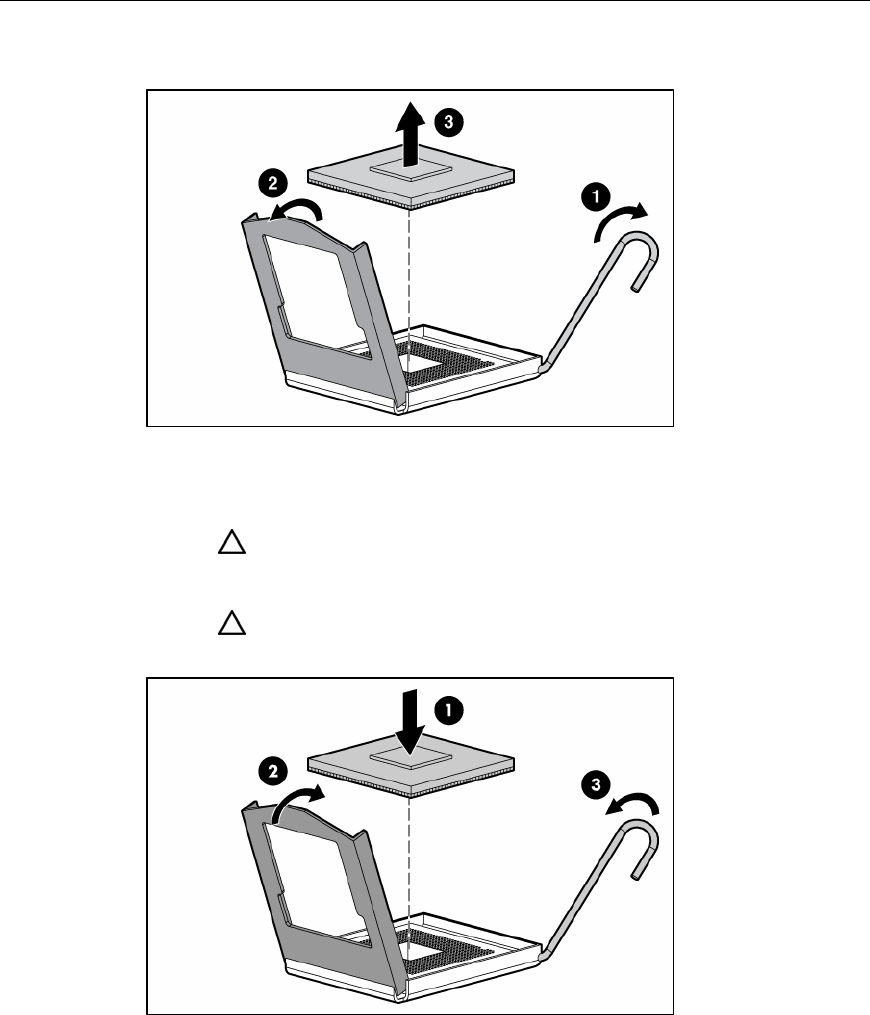

6. Remove the processor.
To replace the component:
1. Install the processor.
CAUTION: To prevent possible server malfunction or damage to
the equipment, be sure to align the processor pins with the
corresponding holes in the socket.
CAUTION: To prevent possible server malfunction or damage to
the equipment, be sure to completely close the processor locking lever.
