20 HP ProLiant ML310 Generation 2 Server Maintenance and Service Guide
3. As the drive begins to spin, be sure that the drive LEDs illuminate one at a
time and then turn off together to indicate that the system has recognized the
new drive.
In fault-tolerant configurations, allow the replacement drive to be
reconstructed automatically with data from the other drives. While
reconstruction is in progress, the online LED flashes.
NOTE: The SATA RAID feature supports the use of two hard
drives. When the feature is enabled on a system with three or more
drives installed, the system only recognizes the two drives with the
lowest drive numbers.
Access panel
WARNING: To reduce the risk of personal injury from hot
surfaces, allow the drives and the internal system components to
cool before touching them.
CAUTION: Do not operate the server for long periods with the
access panel open or removed. Operating the server in this manner
results in improper airflow and improper cooling that can lead to thermal
damage.
1. Power down the server ("Powering down the server" on page 15).
2. Remove the bezel ("Bezel" on page 17
).

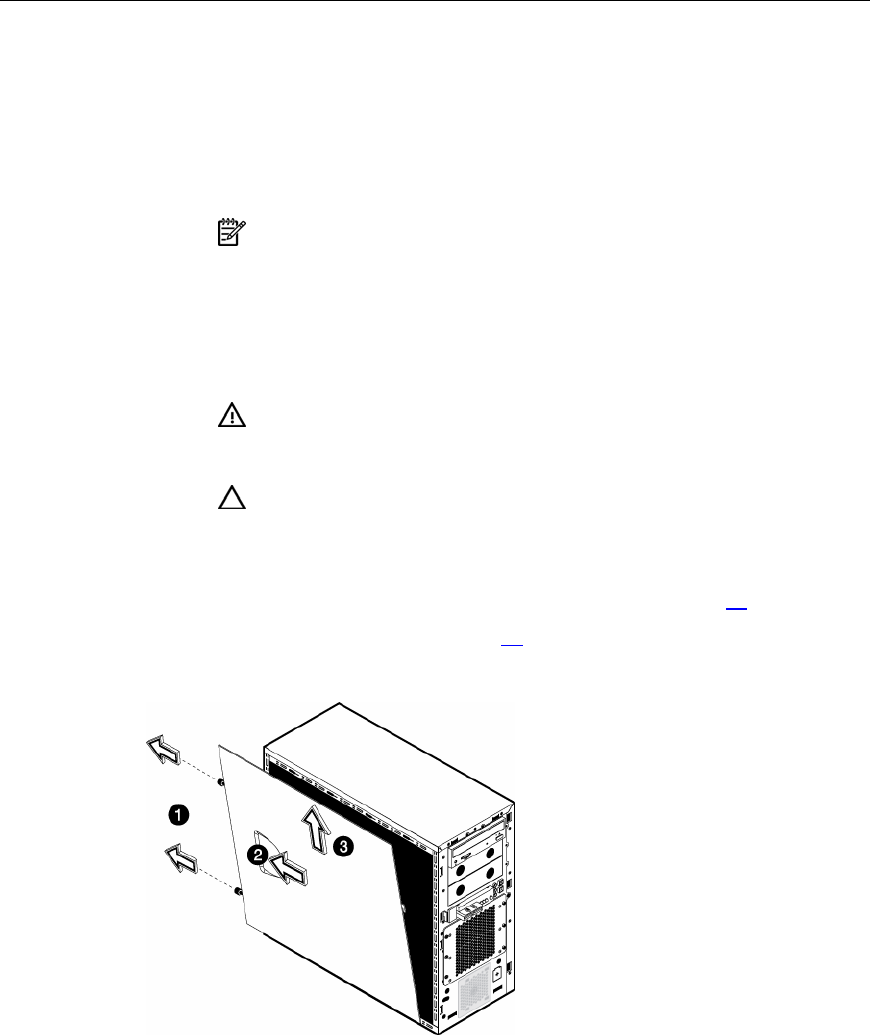

3. Remove the access panel.
