18 HP ProLiant ML310 Generation 2 Server Maintenance and Service Guide

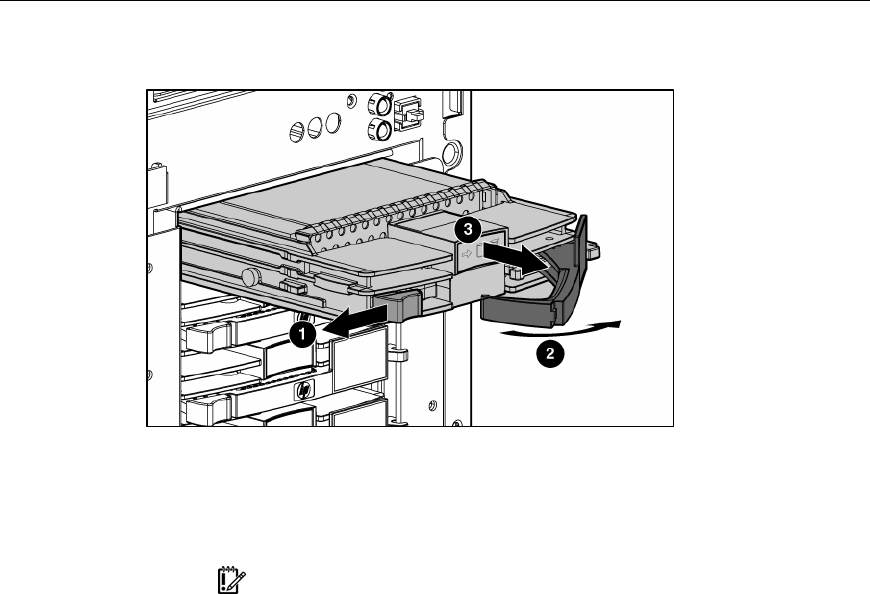

3. Remove the hard drive.
To replace the component:
1. Slide the drive into the cage until it clicks, locking the drive into place.
2. Close the lever.
IMPORTANT: When the drive is inserted, the drive LEDs flash for
2 seconds to indicate that the drive is seated properly and receiving
power.
3. As the drive begins to spin, be sure that the drive LEDs illuminate one at a
time and then turn off together to indicate that the system has recognized the
new drive.
In fault-tolerant configurations, allow the replacement drive to be
reconstructed automatically with data from the other drives. While
reconstruction is in progress, the online LED flashes.
Hot-plug SATA/SAS hard drive
Hot-plug SATA and hot-plug SAS hard drives can be used interchangeably when
a SAS controller is installed. The embedded SATA controller supports only
SATA drives.
