16 HP ProLiant ML310 Generation 2 Server Maintenance and Service Guide
2. Disconnect peripheral device and power cables.
3. Release the server from the tray.
4. Extend the server from the rack.
5. Remove the server from the tray and place it on a flat work surface.

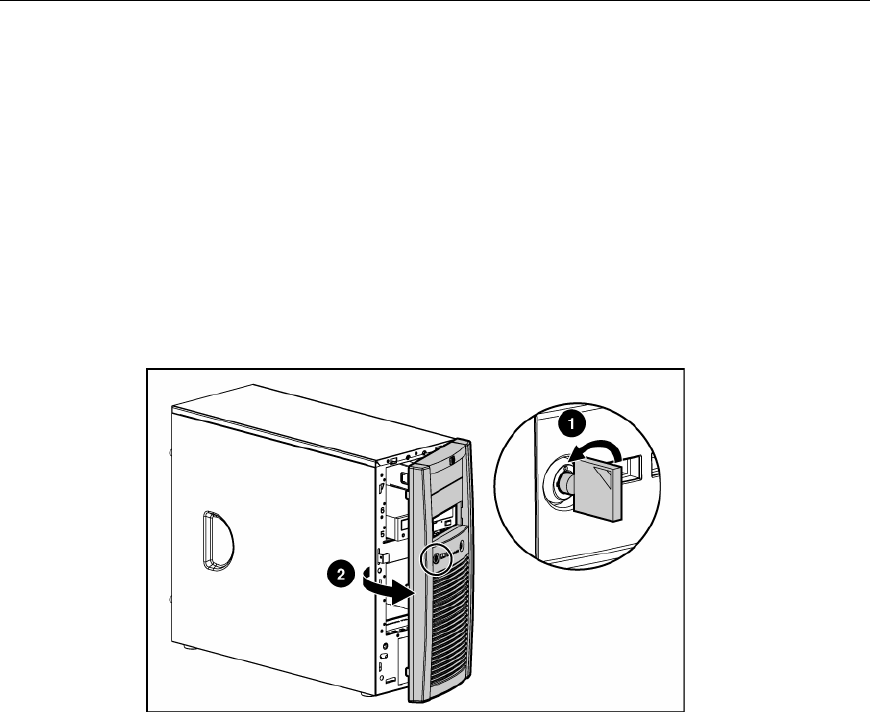

Unlocking the bezel
Unlock and open the bezel before accessing the hard drive cage and before
removing the access panel. Close and lock the bezel during normal server
operations to ensure proper cooling airflow.
