Connectors, Switches, and LED Indicators
I/O Board Components

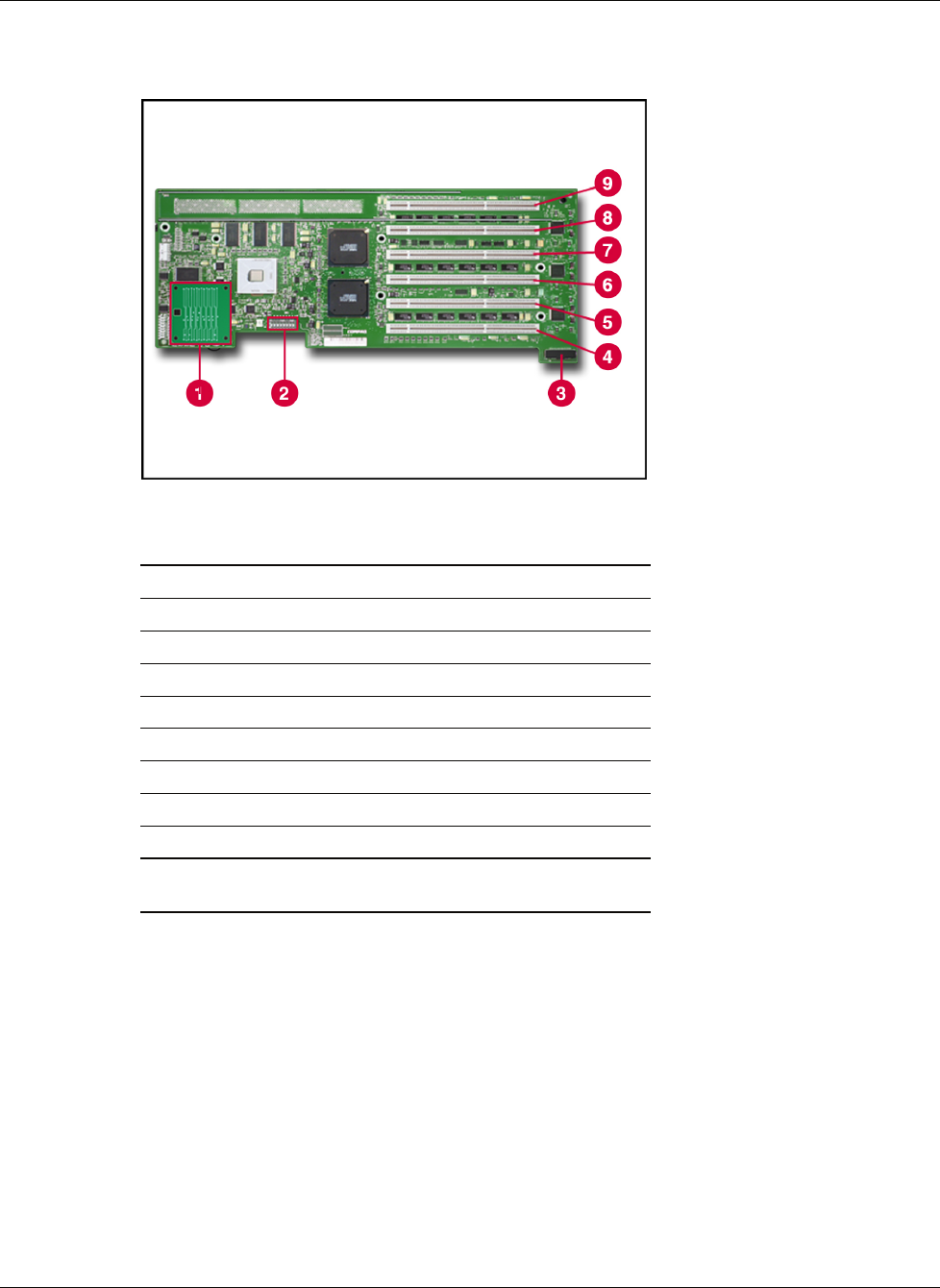

Figure 7-3: I/O board components
Item Description
1 Array enabler board
2 I/O board switch bank (SW7)
3 PCI-X hot-plug cable connector
4 PCI-X slot 1
5 PCI-X slot 2
6 PCI-X slot 3
7 PCI-X slot 4
8 PCI-X slot 5
9 PCI-X slot 6
The operating system detects PCI devices in the following slot
order: 5-6-1-2-3-4.
