Power and Media Module Removal and Replacement Procedures
HP ProLiant DL740 Server Maintenance and Service Guide 5-17
HP CONFIDENTIAL Codename: Jethro Part Number: 270853-004 Last Saved On: 2/10/04 3:51 PM

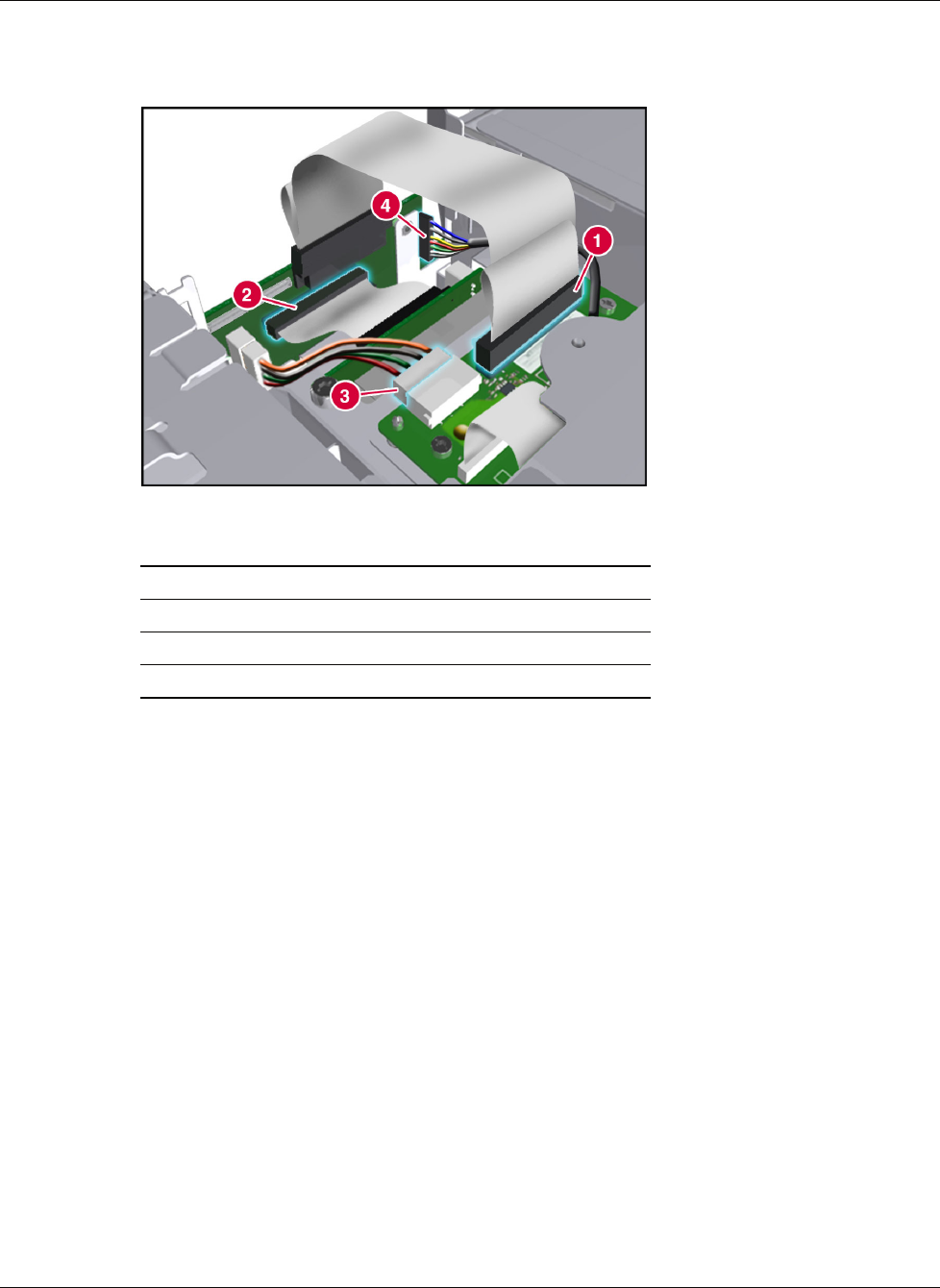

Power and Media Module Cable Routing Diagram
Figure 5-15: Power and media module cable routing
Item Description
1 DVD/CD-ROM/Diskette drive signal cable
2 SCSI hard drive signal cable
3 Media drive bay and SCSI hard drive power cable
4 Power On/Standby/LED/UID/switch assembly cable
