Power and Media Module Removal and Replacement Procedures

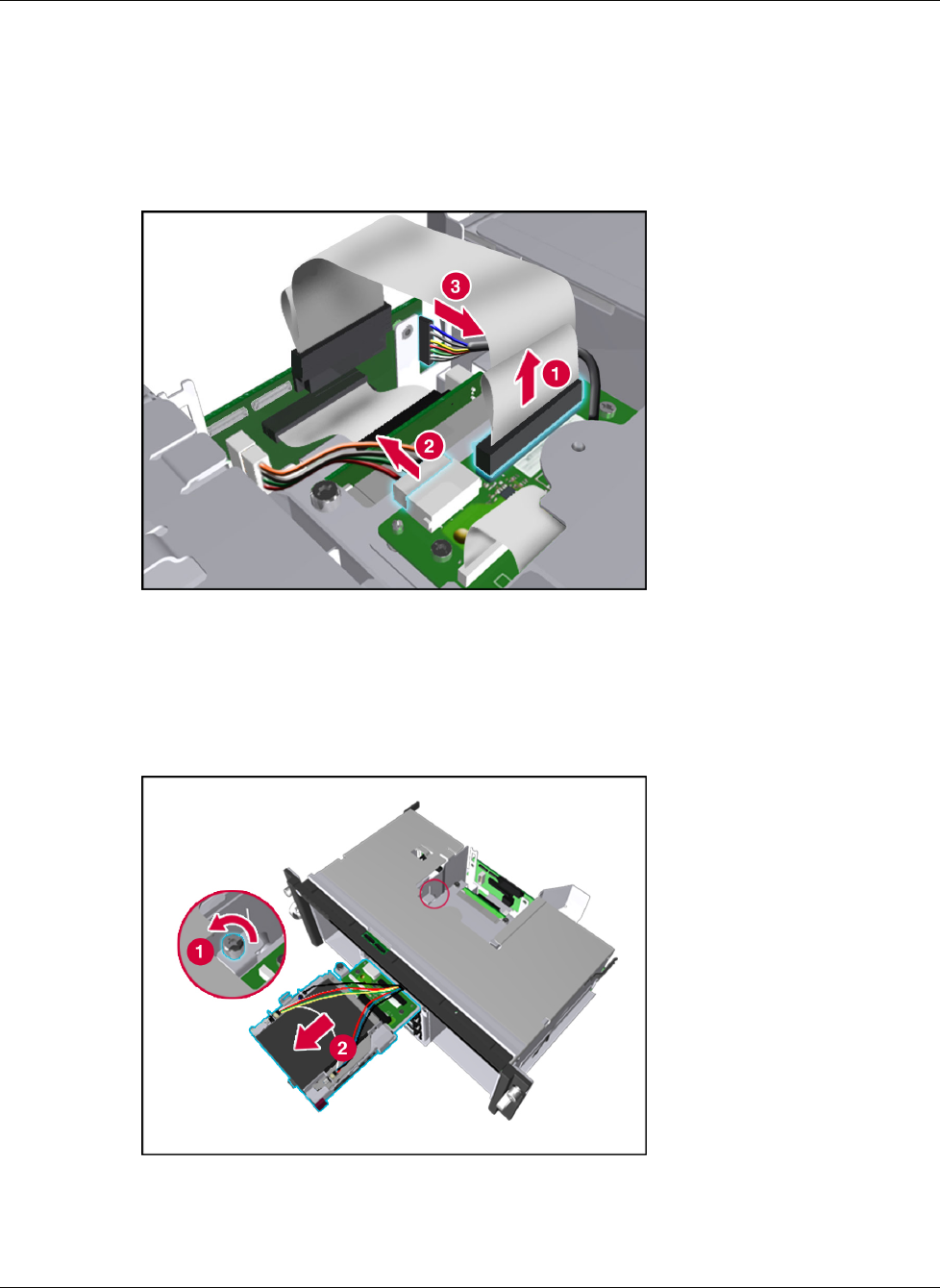

6. Disconnect the DVD/CD-ROM/diskette drive signal cable from the device interface
board (1).
7. Disconnect the media drive bay and SCSI hard drive power cable from the device
interface board (2).
8. Disconnect the Power On/Standby/UID switch cable from the midplane (3).
Figure 5-13: Disconnecting the drive and power cables
9. Remove the power and media module bezel. Refer to “Power and Media Module Bezel”
in this chapter.
10. Loosen the thumbscrew to release the removable media assembly (1).
11. Push the removable media assembly through the front of the module (2).
Figure 5-14: Removing the removable media assembly
Reverse steps 1 through 11 to replace the removable media assembly.
