Power and Media Module Removal and Replacement Procedures
3. Remove the LED bezel by lifting it off the chassis (1).
4. Disconnect the two LED signal cables by gently lifting the cable clamps (2), and then
sliding the released cables out of the connector (3).
5. Pull the LED signal cables clear of the top of the power and media module. This provides
access to the thumbscrew and cables connected to the removable media assembly.
CAUTION: The LED signal cable connector clamps can be broken if forced open.

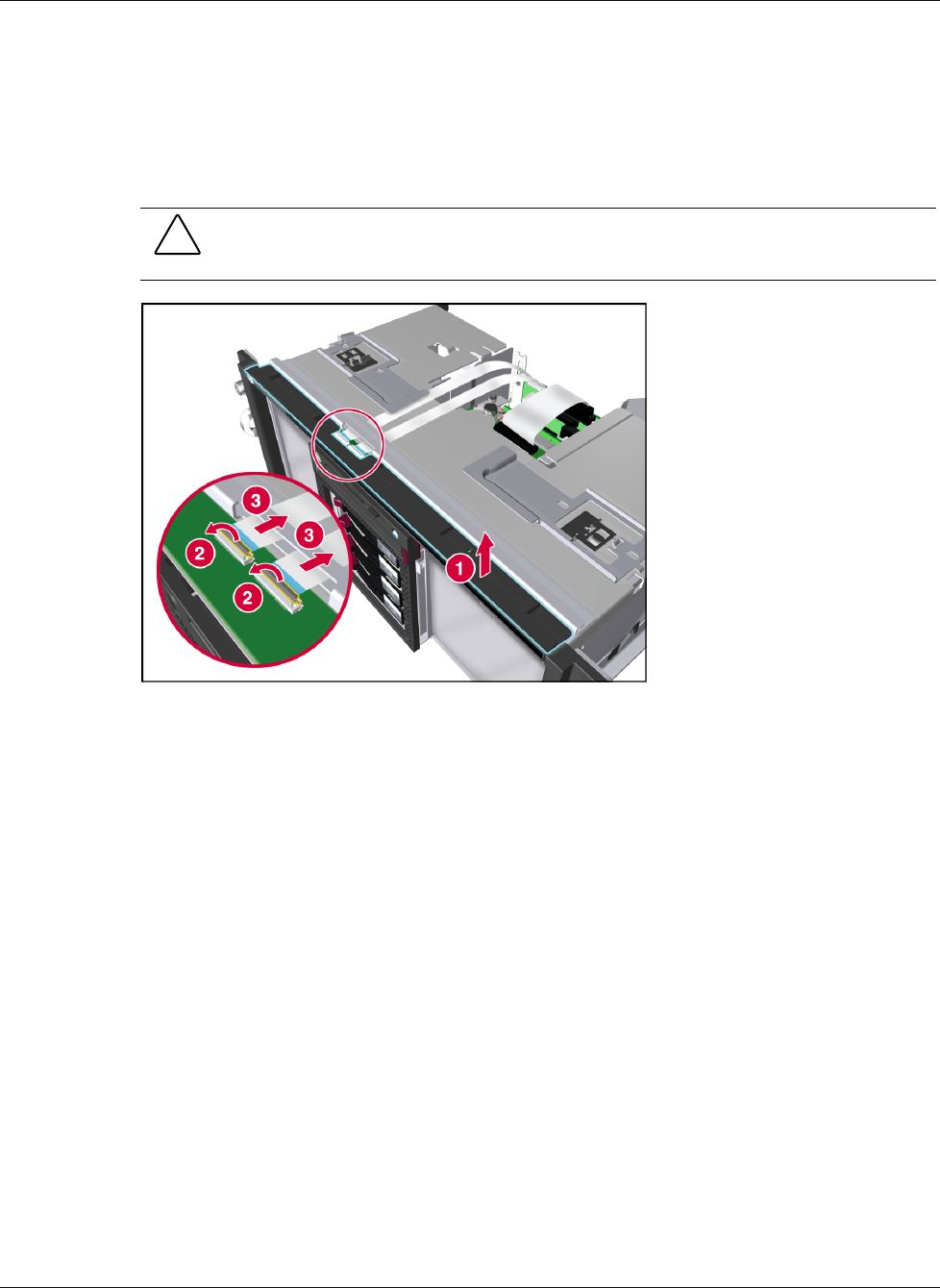

Figure 5-12: Removing the LED bezel and LED signal cables
HP ProLiant DL740 Server Maintenance and Service Guide 5-15
