Power and Media Module Removal and Replacement Procedures
Removing a Hot-Plug SCSI Hard Disk Drive
To remove a hot-plug SCSI hard disk drive:
1. To remove a hot-plug SCSI hard drive, push the release button on the left of the drive and
rotate the hot-plug drive ejector lever outward to unlock the drive.
2. Pull the drive out of the drive bay.

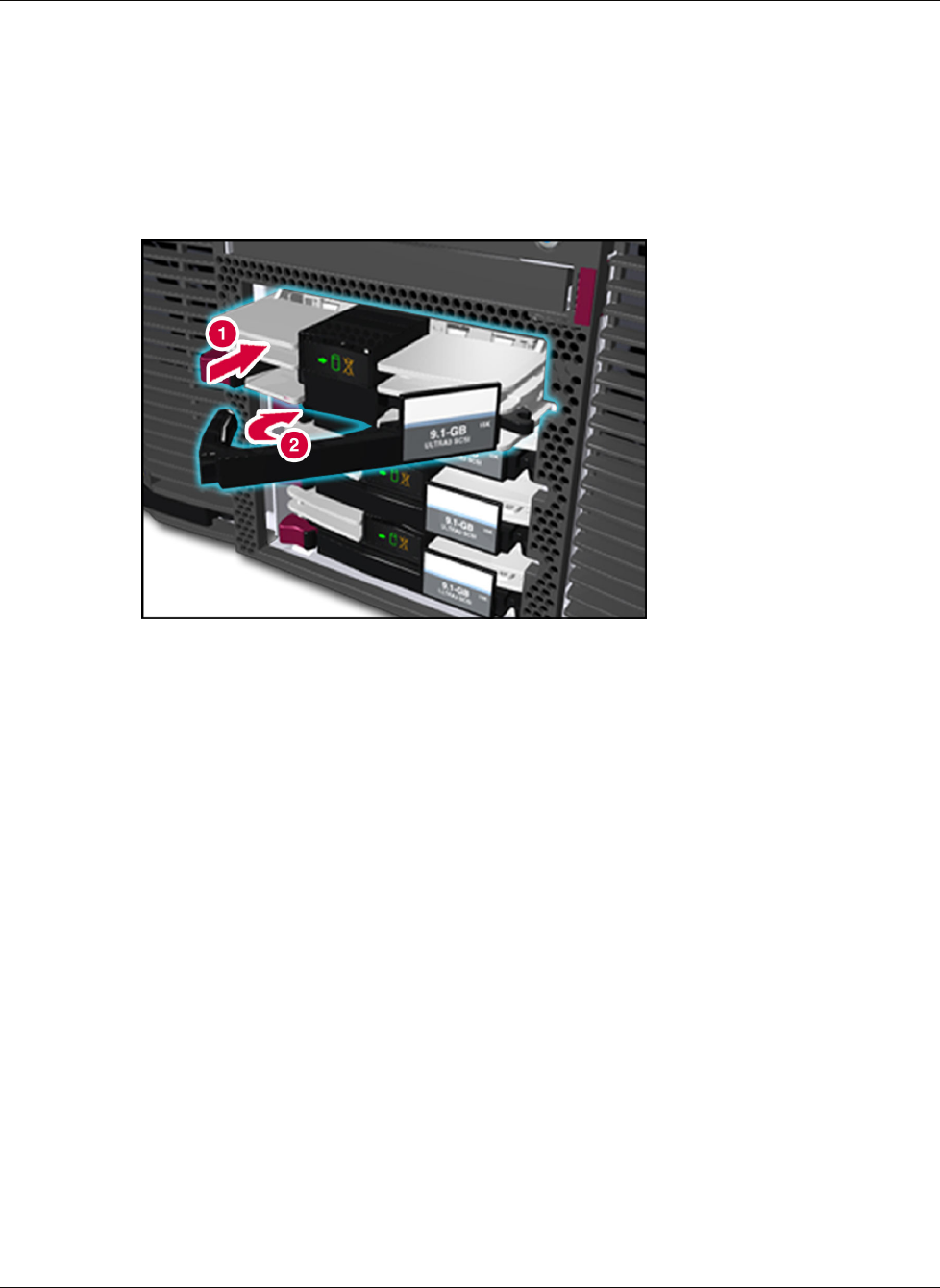

Figure 5-9: Removing a hot-plug SCSI hard drive
Reverse steps 1 and 2 to replace a hot-plug hard drive.
