Power and Media Module Removal and Replacement Procedures
Hard Drive Blank
To remove a hard drive blank from a hard drive bay:
1. Push the side of the retaining clips inward (1).
2. Pull the hard drive blank from the bay (2).

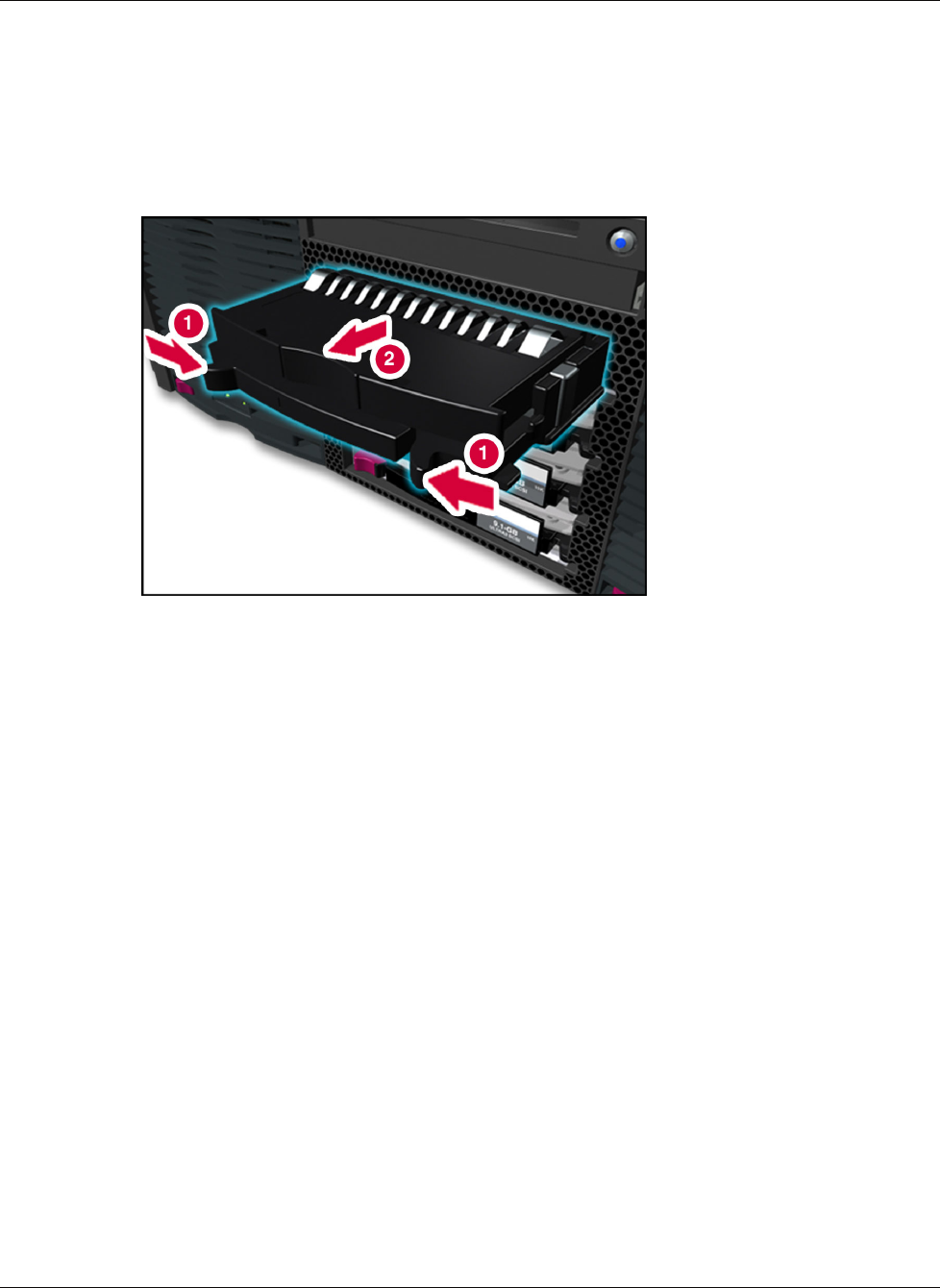

Figure 5-8: Removing a hard drive blank
Reverse steps 1 and 2 to replace a hard drive blank.
