Power and Media Module Removal and Replacement Procedures
Power and Media Module Bezel
To remove the power and media module bezel:
1. Power down the server. Refer to “Powering Down the Server” in Chapter 2.
2. Remove both power supplies. Refer to “Removing and Replacing a Hot-Plug Power
Supply” in this chapter.
3. Remove the power and media module. Refer to “Removing the Power and Media
Module” in this chapter.

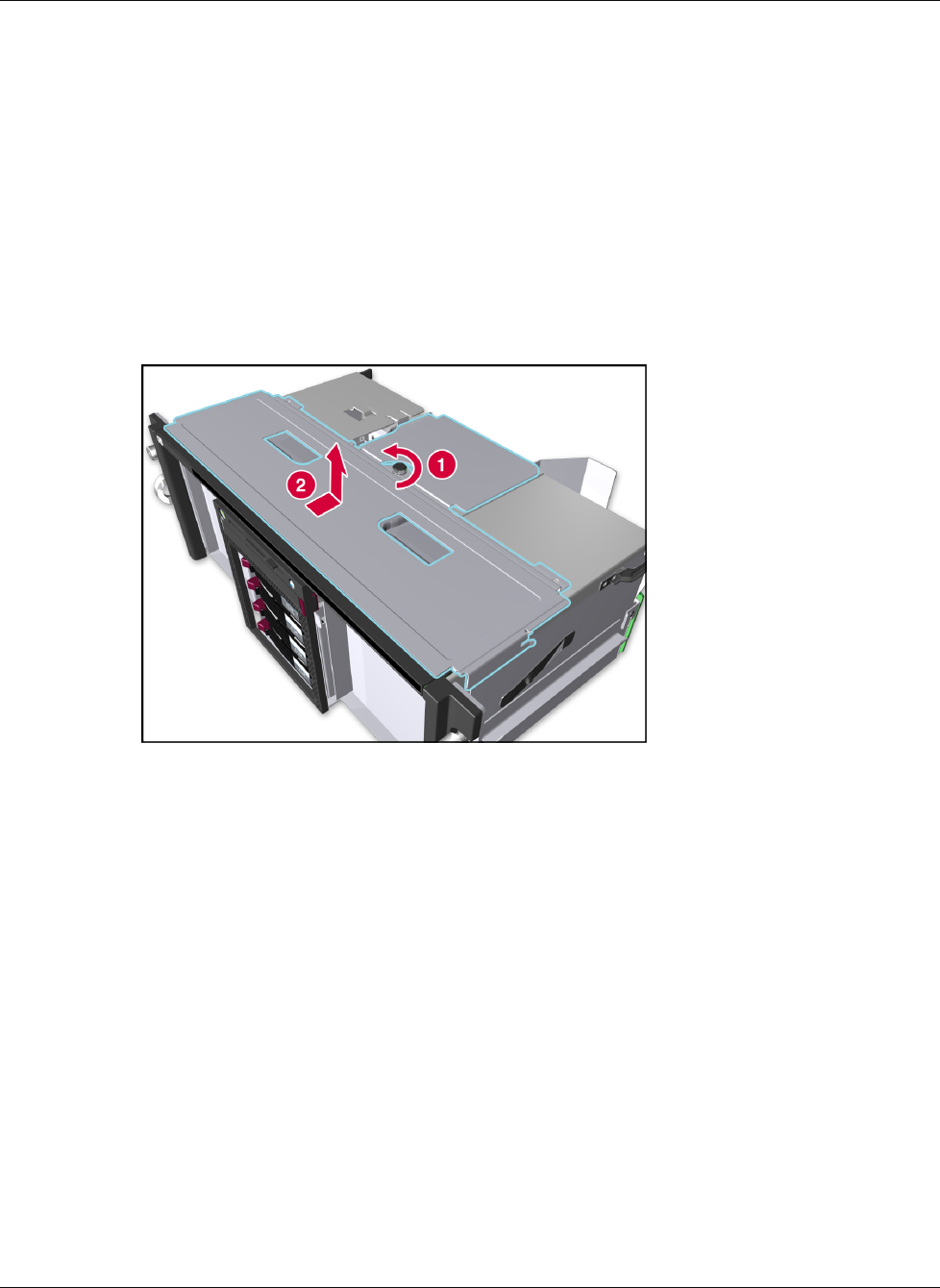

4. Remove the power and media module cover by loosening the thumbscrew (1), sliding the
cover back, and then lifting the cover off of the module chassis (2).
Figure 5-6: Removing the LED bezel
