Power and Media Module Removal and Replacement Procedures
Power Supply LED Indicators
Each power supply has status and AC power LEDs. Refer to Figure 5-5 and Table 5-1 for a
detailed description of both indicators.

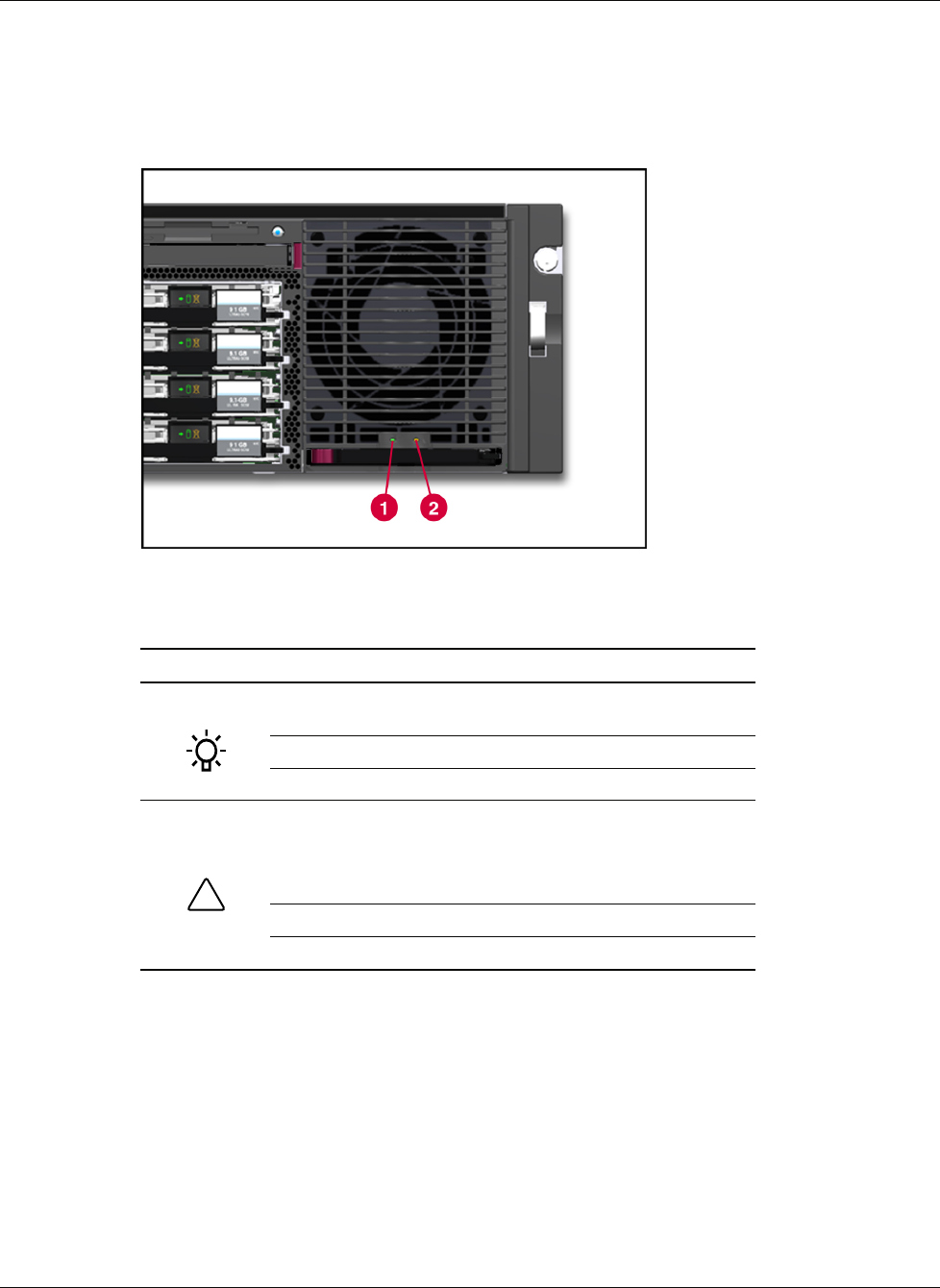

Figure 5-5: Power supply LEDs
Table 5-1: Power Supply LEDs
Item Condition Meaning
Green blinking AC power is connected to this power
supply. System is in standby mode.
Green Normal operation.
1 AC Power
Off No AC power.
Amber Fault detected in this power supply.
Replace power supply.
-or-
No A/C power.
Amber blinking Power supply is in current limit mode.
2 Attention
Off Normal operation.
