Host Module Removal and Replacement Procedures
4-34 HP ProLiant DL740 Server Maintenance and Service Guide
HP CONFIDENTIAL Codename: Jethro Part Number: 270853-004 Last Saved On: 2/13/04 10:40 AM
System Board
The system board is located in the bottom of the host module.

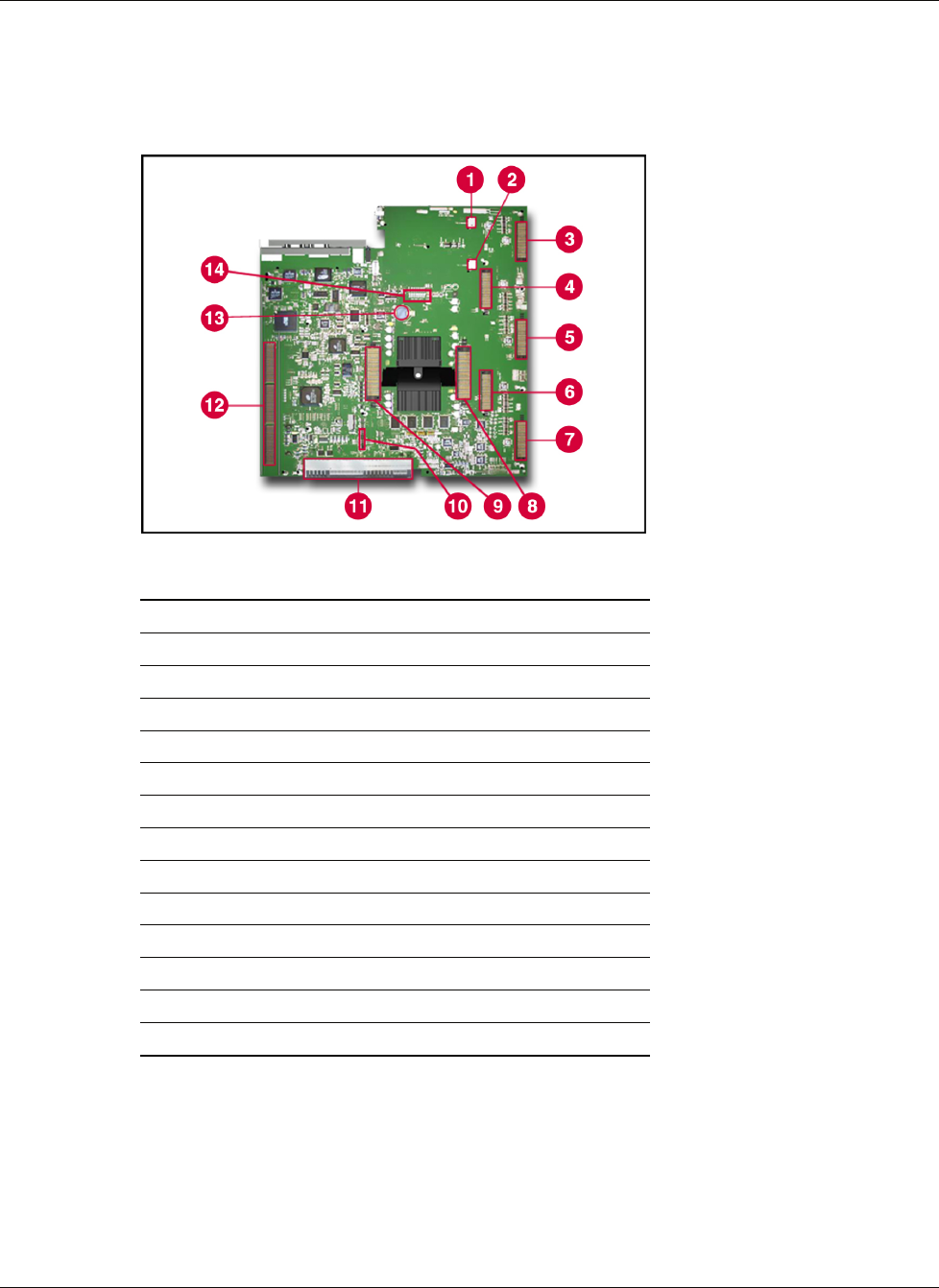

Figure 4-31: System board components
Item Description
1 Fan 2 connector
2 Fan 1 connector
3 Memory cartridge 1 connector
4 Memory cartridge 2 connector
5 Memory cartridge 3 connector
6 Memory cartridge 4 connector
7 Memory cartridge 5 connector
8 Processor board 2 connector
9 Processor board 1 connector
10 Remote Insight board connector
11 System/midplane board connector
12 I/O board connector
13 System battery
14 iLO diagnostic LEDs
