I/O Expansion Slot Dividers
To remove the five I/O expansion slot dividers:
1. Power down the server. Refer to “Powering Down the Server” in Chapter 2.
2. Open the top access panel. Refer to “Top Access Panel” in Chapter 3.
3. Remove all installed expansion boards in slots 1 through 6. Refer to “Removing or
Replacing a Non-Hot-Plug Expansion Board” in this chapter.
4. Remove each I/O expansion board divider by depressing the divider clip to release the
divider (1), and then sliding the divider away from the PCI Hot Plug buttons and lifting it
out (2).

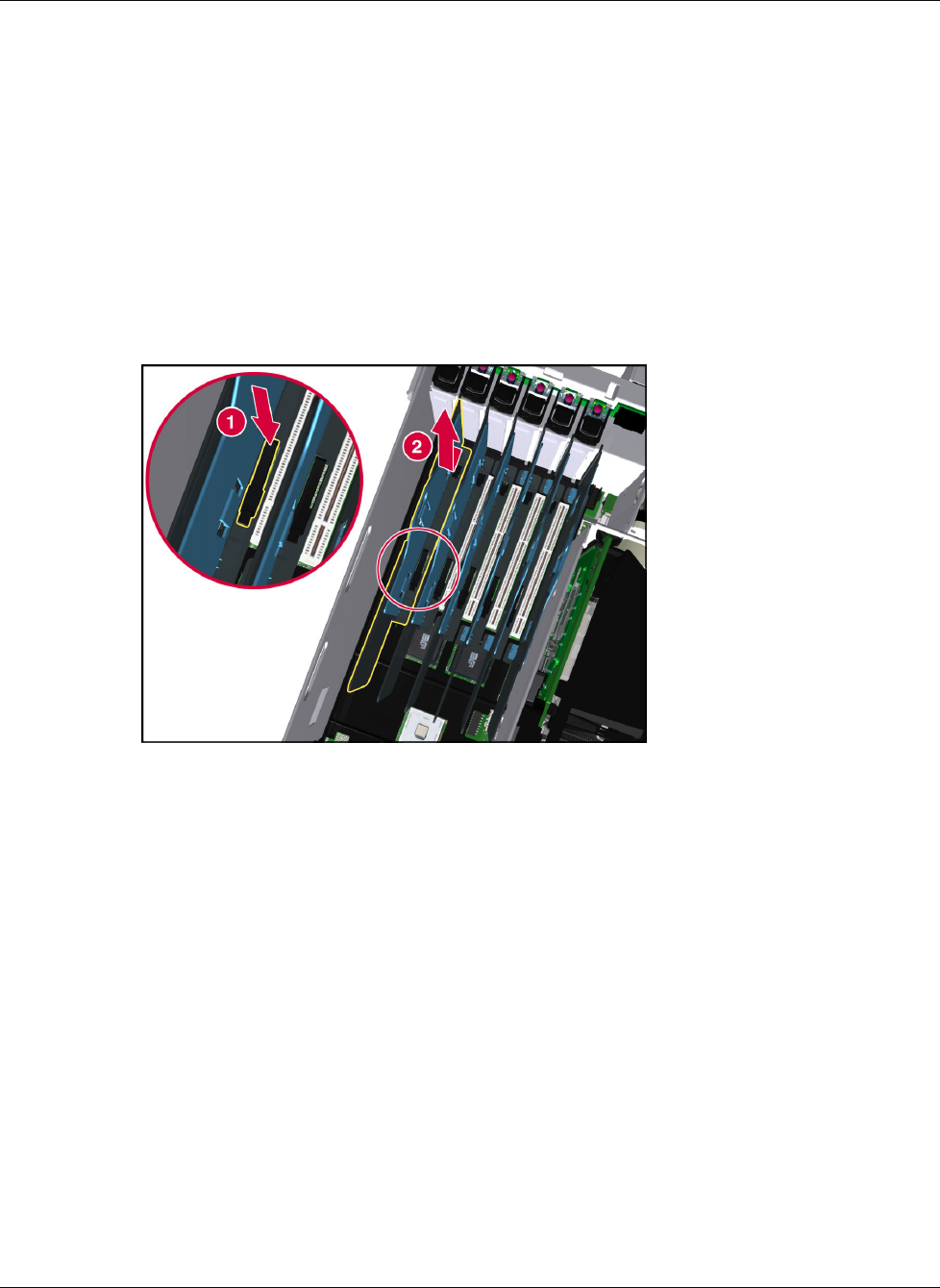

Figure 4-23: Removing the I/O expansion slot dividers
Reverse steps 1 through 4 to replace the I/O expansion slot dividers.
