Host Module Removal and Replacement Procedures
HP ProLiant DL740 Server Maintenance and Service Guide 4-9
HP CONFIDENTIAL Codename: Jethro Part Number: 270853-004 Last Saved On: 2/13/04 10:40 AM
Memory Cartridge
Identifying
The five Hot Plug RAID Memory cartridges are located in the front side of the host module.
Each memory cartridge contains up to eight DIMMs.

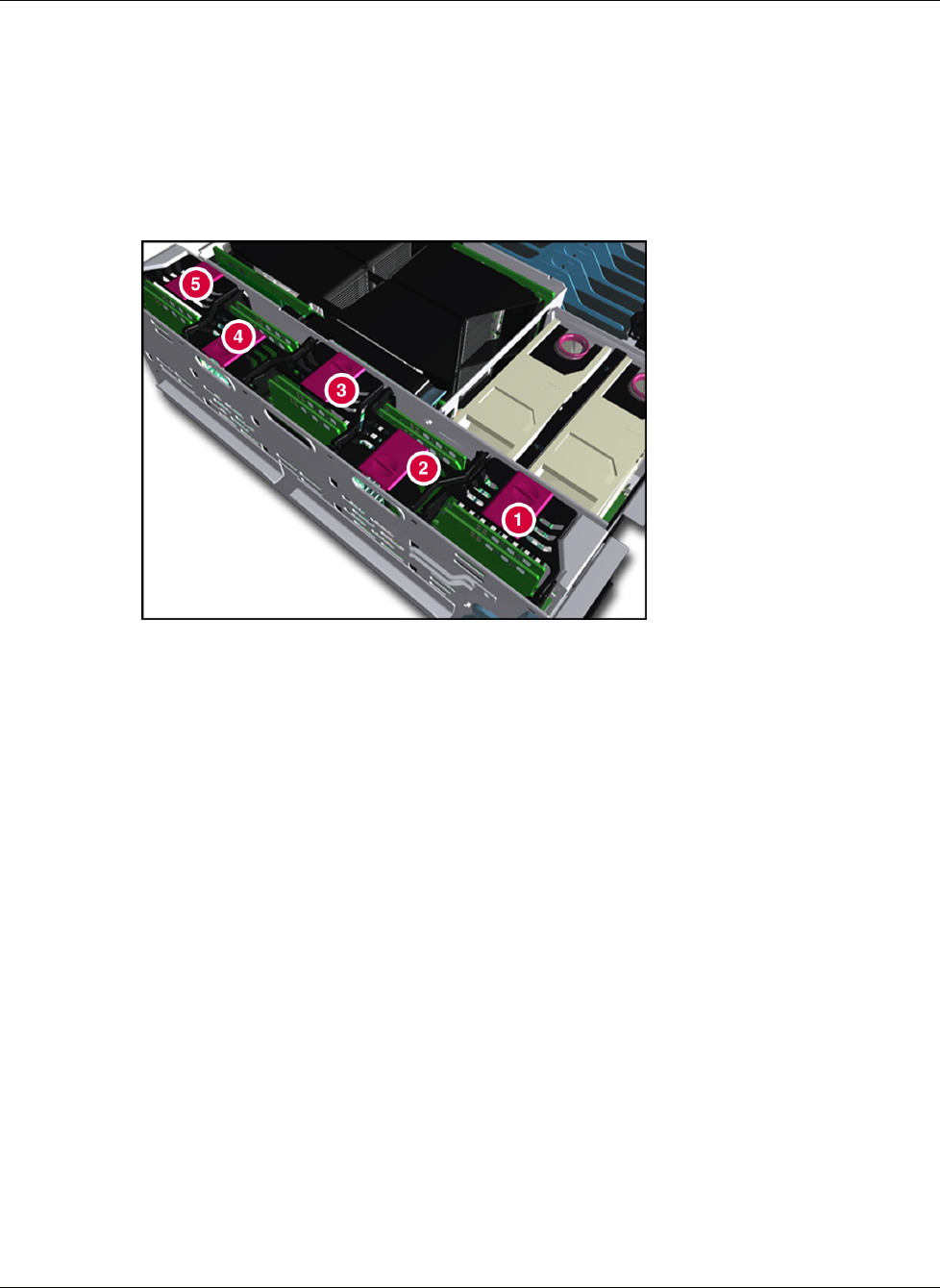

Figure 4-10: Memory cartridge area
