Host Module Removal and Replacement Procedures
4-2 HP ProLiant DL740 Server Maintenance and Service Guide
HP CONFIDENTIAL Codename: Jethro Part Number: 270853-004 Last Saved On: 2/13/04 10:40 AM
4. Push down the processor board lever latch to release the lever (1).
5. Lift up the processor board lever to release the board (2), and lift the processor board out
of the module (3).

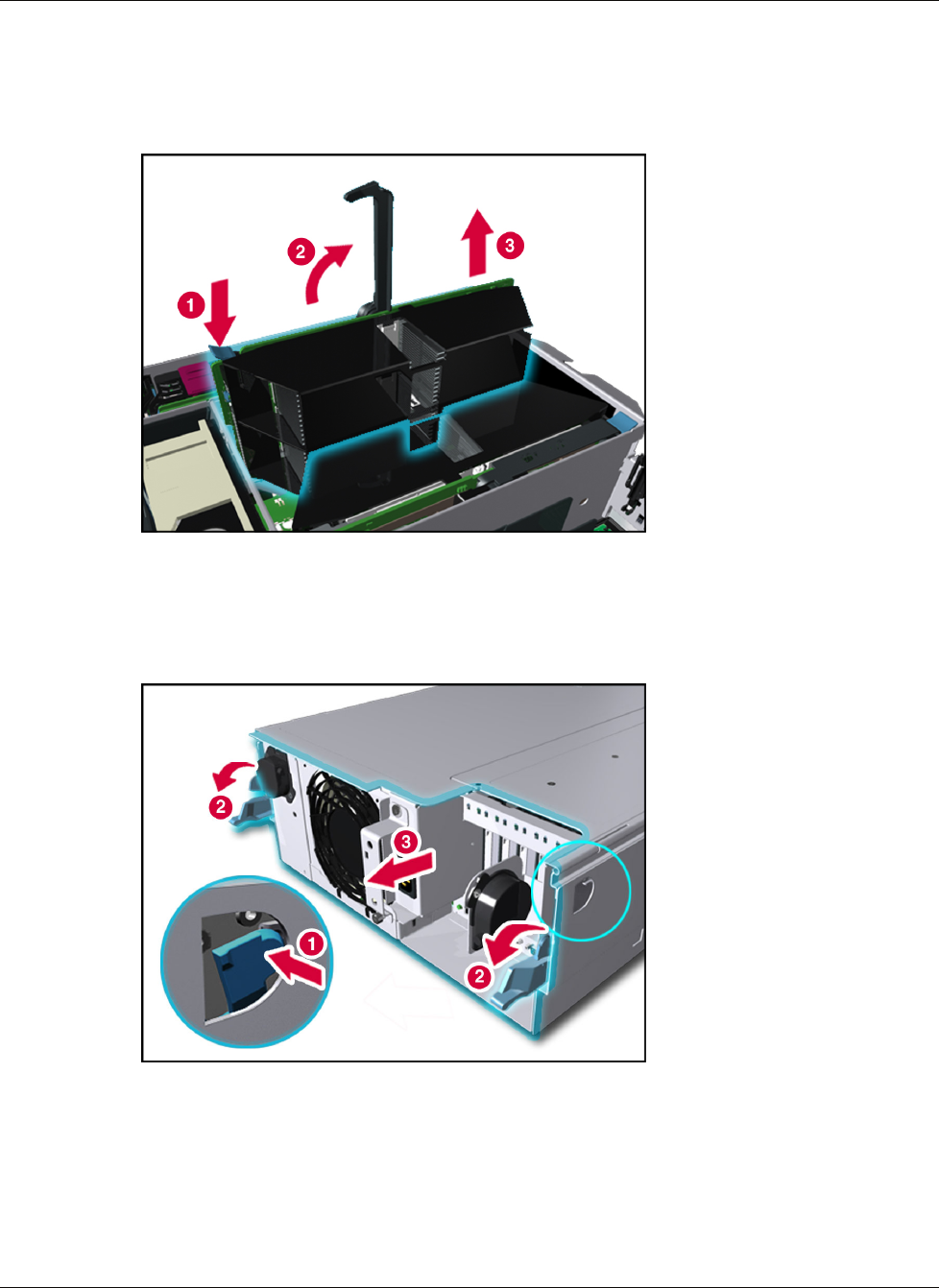

Figure 4-1: Removing the processor board
6. Push in on the sides of the cam levers on the host module (1), and rotate the top of the
levers downward (2), as shown in Figure 4-2.
7. Pull the host module out of the chassis (3).
Figure 4-2: Releasing the host module
