ProLiant DL740 Server Maintenance and Service Guide

Chassis Components Removal and Replacement Procedures
Cable Management System
The cable management system is installed on the back of the server mounted in the rack and
consists of two cable management system reel assemblies and a cable management system
harness.
To remove the cable management system:
1. Detach the cable harness hook 5 for the loop labeled 5 on the server rail.
2. Detach the cable harness hook 4 from reel 4.
3. Detach the cable harness hook 3 from reel 3.
4. Unwrap the server cables and all of the short straps labeled 2 from the cable bundle.
5. Disconnect the power cords and peripheral devices such as the keyboard, mouse, and
monitor.
6. Disconnect the cable harness hook 1 from the loop labeled 1 on the server chassis.
7. Loosen the thumbscrew (1) and remove the reel labeled 4 to the right side of the server
chassis (2).

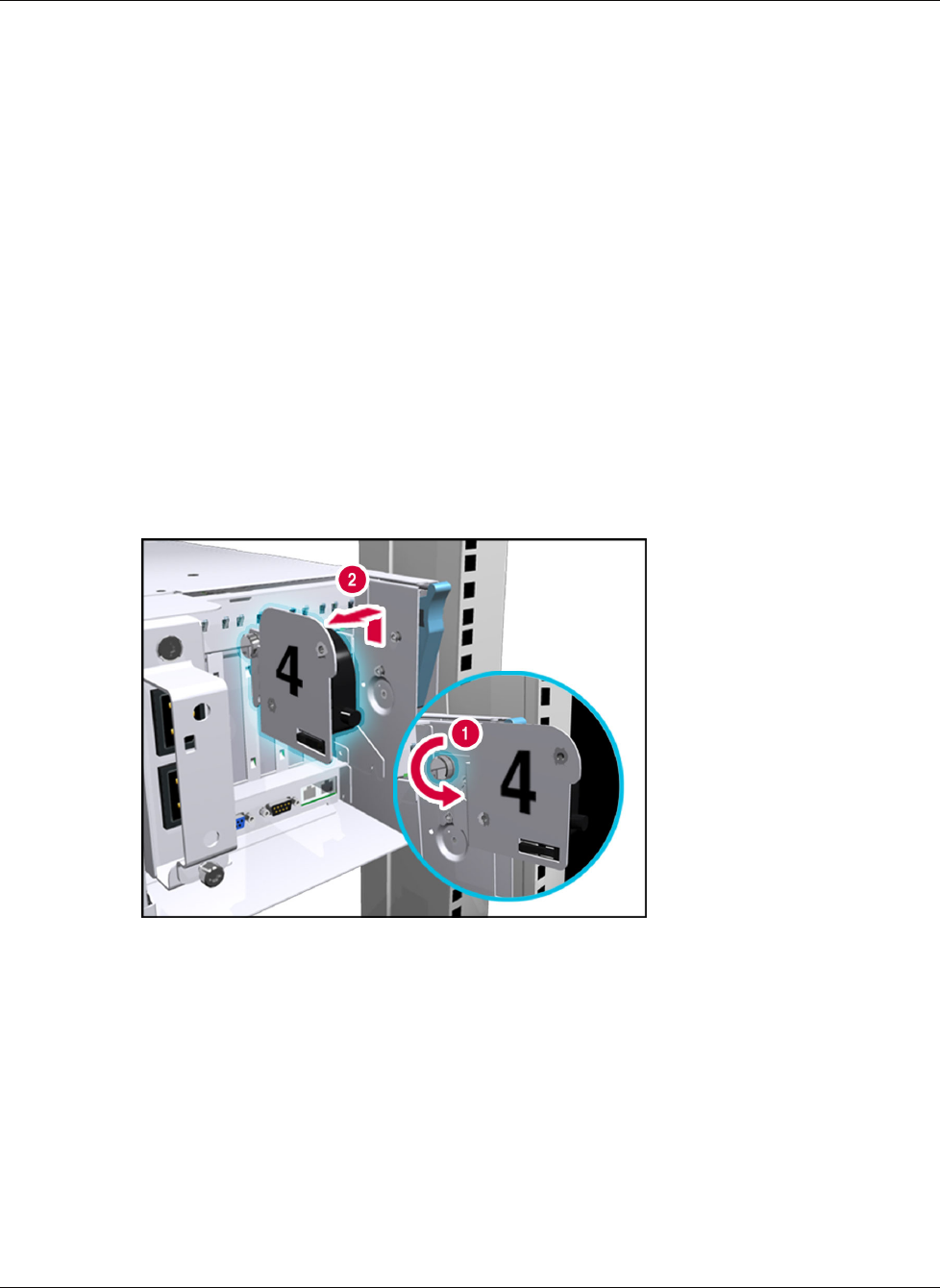

Figure 3-2: Removing reel 4
