Illustrated Parts Catalog
System Chassis

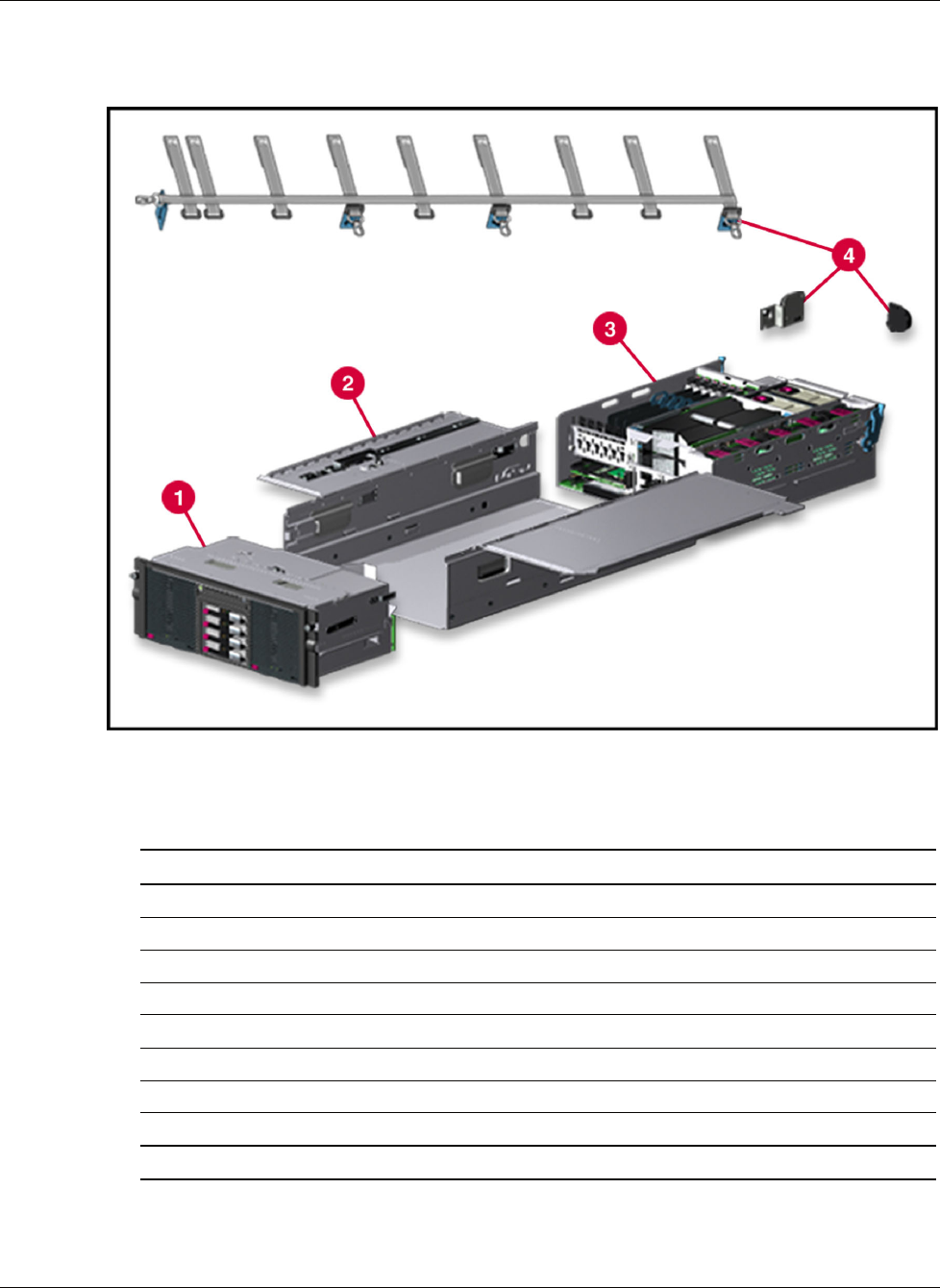

Figure 1-1: System chassis exploded view
Table 1-1: System Chassis Spare Parts List
Item Description Spare Part Number
System Chassis
1 Power and media module
2 System chassis with access panels
3 Host module without PCI-X riser 280612-001
Assemblies
4 Cable management system reel assembly and rails 280620-001
4a Cable management arm* 326779-001
4b Cable management/Velcro* 342294-001
*Not shown
1-2 HP ProLiant DL740 Server Maintenance and Service Guide
