Connectors, Switches, and LED Indicators
Power Supply LED Indicators
Each power supply has status and AC power LEDs. See Figure 7-12 and Table 7-3 for a
detailed description of both indicators.

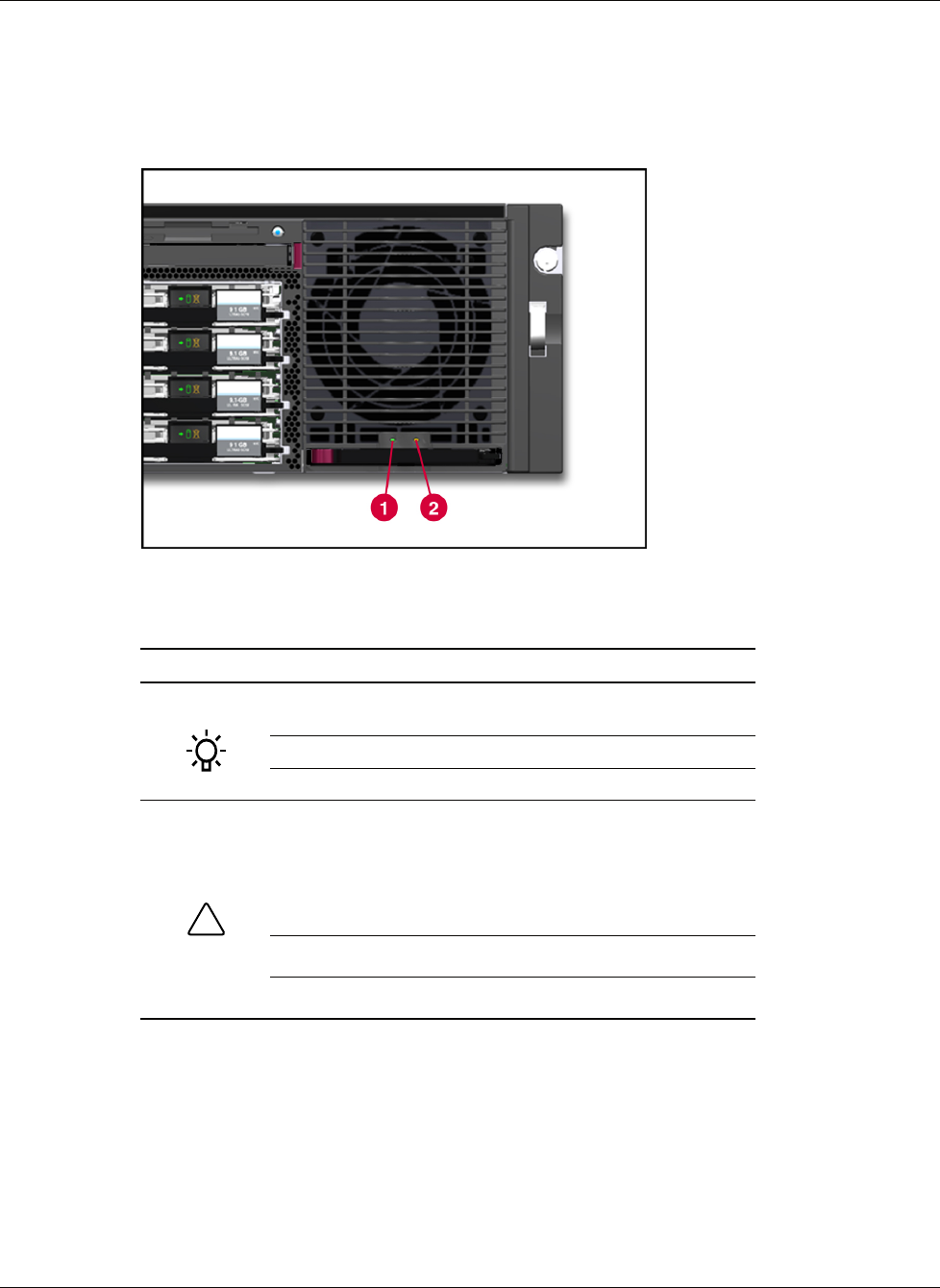

Figure 7-12: Power supply LEDs
Table 7-3: Power Supply LEDs
Item Condition Meaning
Green blinking
AC power is connected to this power
supply. System is in standby mode.
Green Normal operation.
1 AC Power
Off Normal operation.
Off No AC power.
Amber
Fault detected in this power supply.
Must replace power supply.
-or-
No AC power plugged into
corresponding rear AC power port.
Amber blinking Power supply is in current limit mode.
2 Attention
7-14 HP ProLiant DL740 Server Maintenance and Service Guide
