Server component identification 87

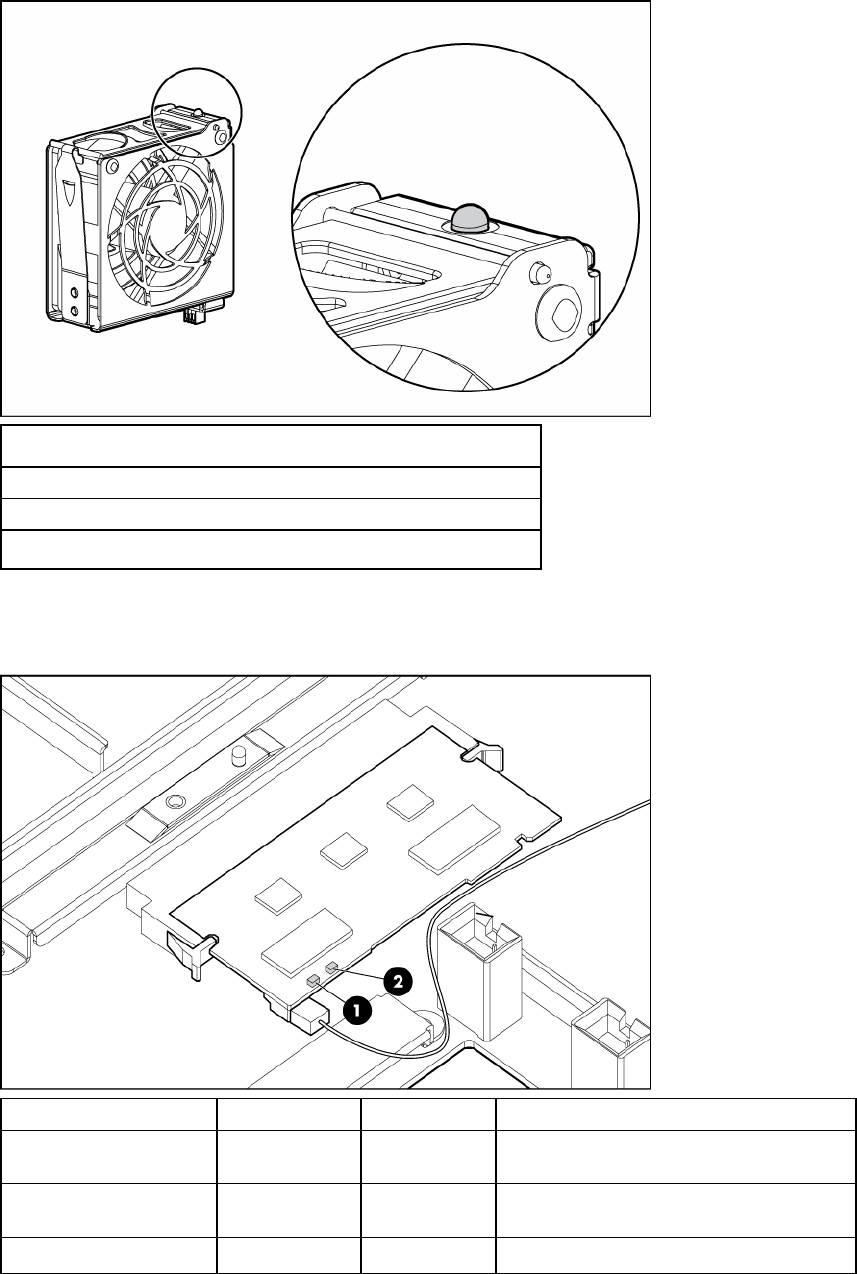

Hot-plug fan LEDs
Status
Green = Operating normally
Amber = Failed
Off = No power
BBWC LEDs
Server status LED 1 (amber) LED 2 (green) Battery module status
Server is on and has
normal run time
Off On Fast charging
Off Flashing
The microcontroller is waiting for
communication from the host controller.
Off Off The battery is fully charged.
