Server component identification 79

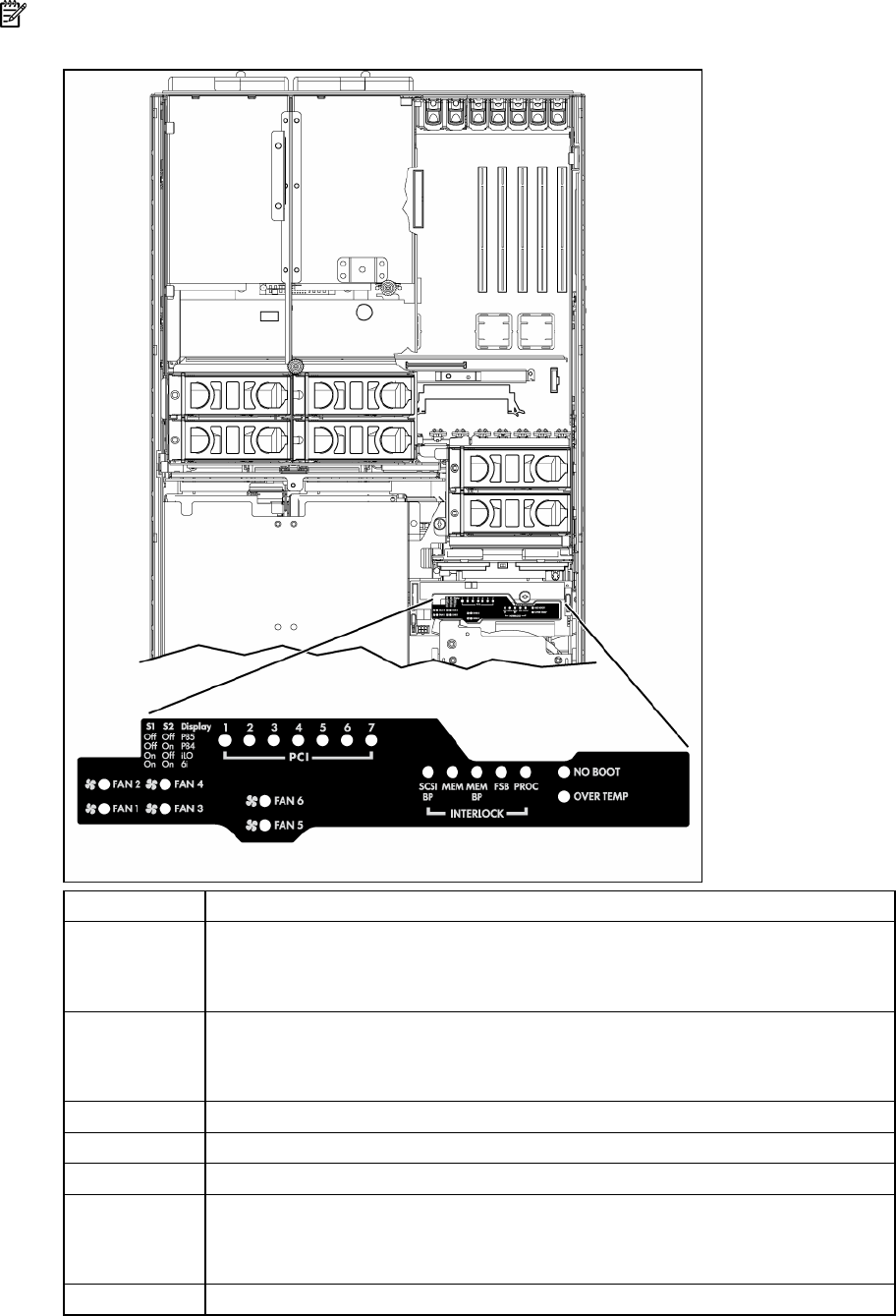

NOTE: The system management driver must be installed for the internal health LED to provide pre-failure
and warranty conditions.
LED Description
Fan X One or more of the following conditions exist:
• A fan is missing or not properly installed.
• A fan failed.
PCI X One or more of the following conditions exist:
• A PCI address parity error was detected on the numbered PCI slot.
• A PCI data parity error was detected on the numbered PCI slot.
SCSI BP The SCSI backplane is missing or not properly installed.
MEM A memory board is not properly installed.
MEM BP A memory backplane is missing or not properly installed.
FSB One or more of the following conditions exist:
• A processor or PPM is missing or not properly installed.
• An FSB configuration error was detected.
PROC A processor is missing or not properly installed.
